Axxess DSP Package Fits Select GM 2010-2017

Product Details
Applications

Description

Upgrade your sound system with this cost-effective, easy-to-install DSP package that includes a vehicle-specific T-harness.

Complete Tuning Control
Installers will have full control to fine-tune each of the 10 channel outputs individually, controlled wirelessly via a free app available for smartphones and tablets. The app makes tuning easy with a 31-band graphic EQ and up to 10ms time delay for each channel, with independent high pass, low pass, and bandpass filters.

Retain Features with a Built-in Interface
Utilizing Axxess’s data interface technology, the AXDSP-X goes beyond what a traditional DSP can do and retains many of the features commonly lost when upgrading a sound system. Voice prompts, parking sensor chimes, and other factory chimes are retained with an adjustable volume control that many traditional DSPs cannot offer. This is a cost-effective solution for customers who want to retain their factory radio and improve their vehicle sound quality, while still retaining systems like SYNC® or OnStar®.

One Solution, Many Applications
The AXDSP-X solution already works with a wide range of vehicle applications and systems, including OE or aftermarket radios, and fixed-level analog and/or digitally controlled amplified systems, in addition to non-amplified vehicles that do not have chimes. The AXDSP-X works with all the existing DSP T-harnesses and still offers the same easy installation behind the radio.

Designed for amplified and non-amplified models

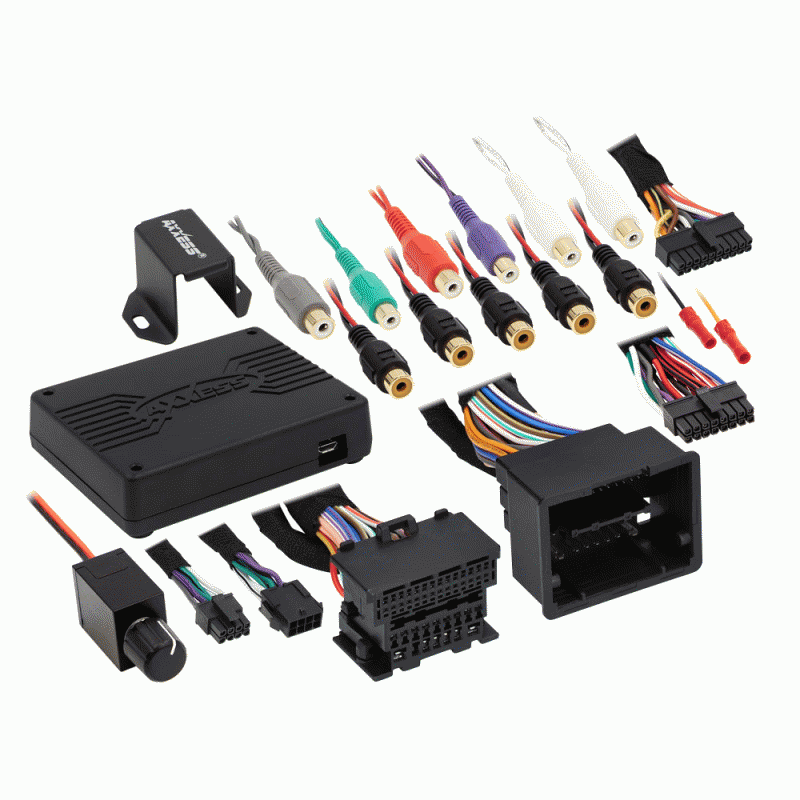

Package includes the AXDSP-X and vehicle-specific T-harness
31-band graphic EQ or 5-band Parametric EQ
Selectable high pass, low pass, or bandpass filters on each channel
6 inputs and 10 individually assignable outputs
Independent equalization on each of the 6 outputs
Selectable slope (12, 24, 36, or 48db per octave)
Each channel can be delayed independently for up to 10ms
Easy behind the radio installation in most applications
Can be used with OE and aftermarket radios
Clipping detection and limiting circuits
Internal header port for adding interface modules
Bass knob included
Retains OE voice prompts (OnStar®)
Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
Read, write, and store configurations for future recall
Password-protect feature is available in the mobile app
Micro “B” USB updatable
1-year limited warranty
