This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.

• Designed to provide (2) channels of low-level audio output from the factory system
• Allows for the installation of an amplifier for speakers or subwoofers
• Gain Controller included to adjust the overall output
• 12v-500mA remote wire activated with signal sense
• 55 watts per channel
• Designed for non-amplified vehicles.

Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.

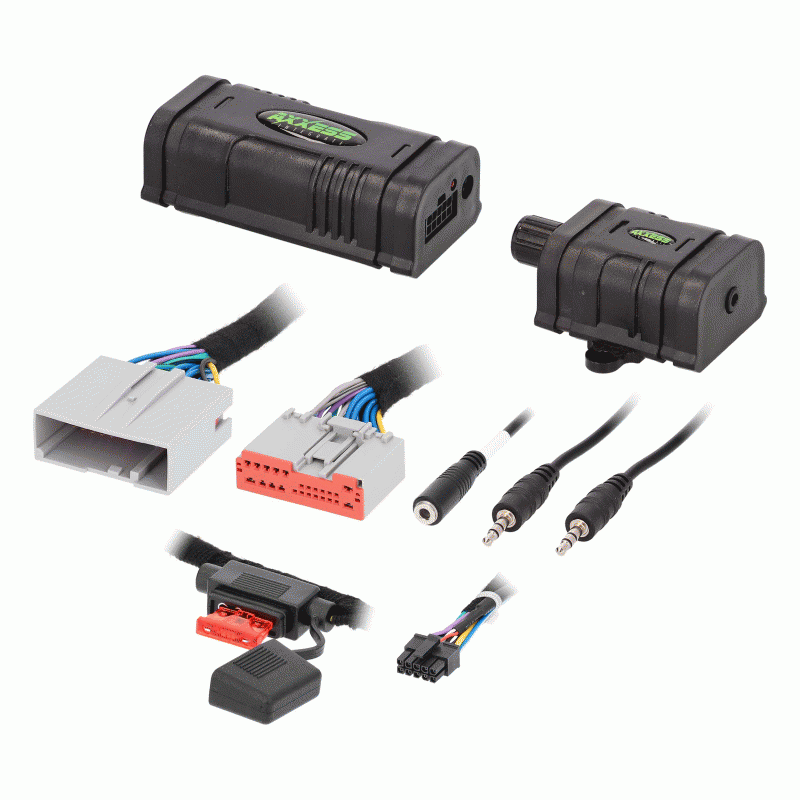

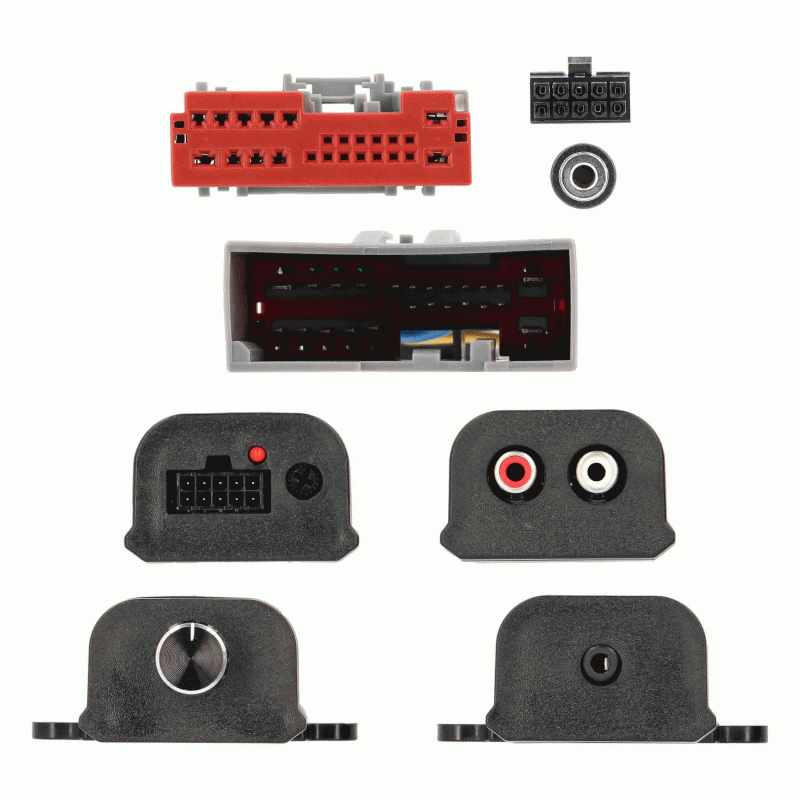

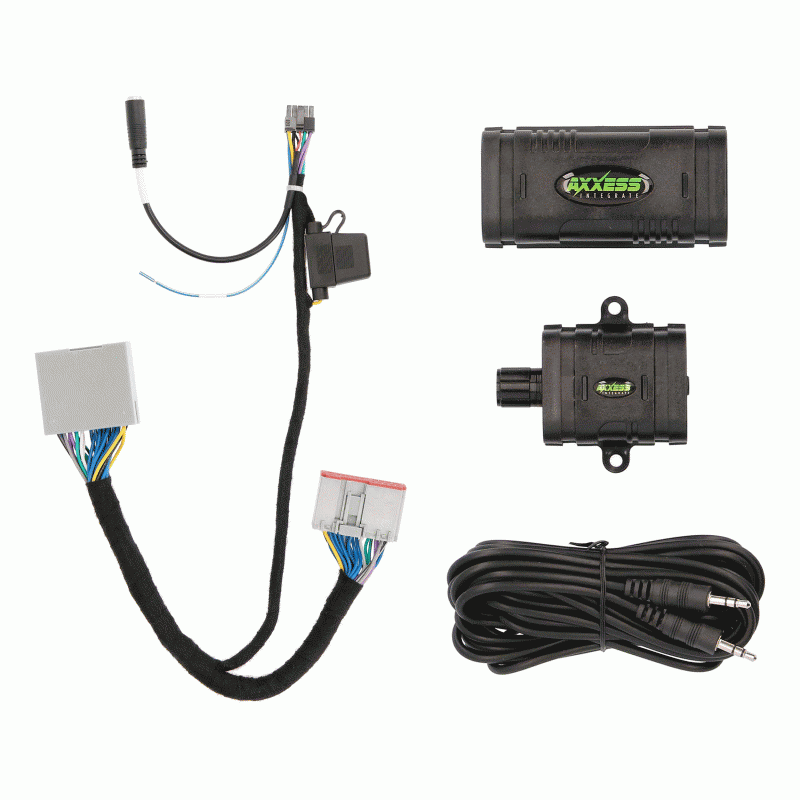

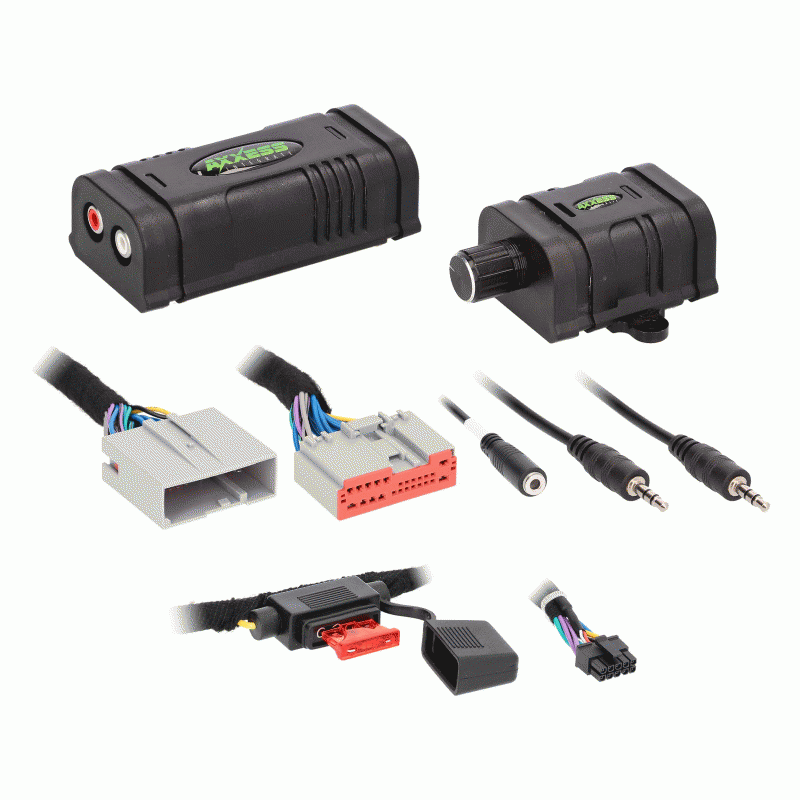

INTERFACE COMPONENTS

• AXLOC-FD1 Wiring Harness
• Gain Controller
• 12v-500mA Remote Wire
• Auxiliary Cable

Ford

• Crown Victoria 2003-2011
• E-Series 2014-2019
• Econoline 2009-2013
• Edge 2007-2010
• Escape 2008-2012
• Expedition 2003-2015
• Explorer 2006-2010
• F-150 2004-2014
• F250/350/450/550 2005-2016
• F650/750 2011-2019
• Five Hundred 2005-2007
• Flex 2009-2012
• Focus 2005-2011
• Freestar 2004-2007
• Freestyle 2005-2007
• Fusion 2006-2012
• Mustang 2004-2014
• Taurus 2008-2012
• Thunderbird 2004-2005
• Transit Connect 2010-2013

Lincoln

• LS 2003-2006
• MKX 2007-2010
• MKZ 2007-2009
• Navigator 2003-2006
• Town Car 2003-2011
• Zephyr 2006 only

Mazda

• Tribute 2008-2011

Mercury

• Grand Marquis 2003-2011
• Mariner 2005-2011
• Milan 2006-2011
• Montego 2005-2007
• Monterey 2004-2007
• Mountaineer 2006-2010
• Sable 2008-2009
