Stock No. AXLOC-FD2

2-Channel line Output Converter - Fits Ford 2011-Up

Description

This vehicle-specific line output converter features a T-harness that installs quickly and makes it easy for installers to add an amplifier for subwoofers or speakers to a factory radio. It is designed to provide (2) channels of low-level audio output from the factory system, with 55 watts per channel. A Gain Controller is included to adjust overall output, and it is 12v-500mA remote-wire activated with signal sense.

  • Designed to provide (2) channels of low-level audio output from the factory system
  • Allows for the installation of an amplifier for speakers or subwoofers
  • Gain Controller included to adjust the overall output
  • 12v-500mA remote wire activated with signal sense
  • 55 watts per channel

Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.

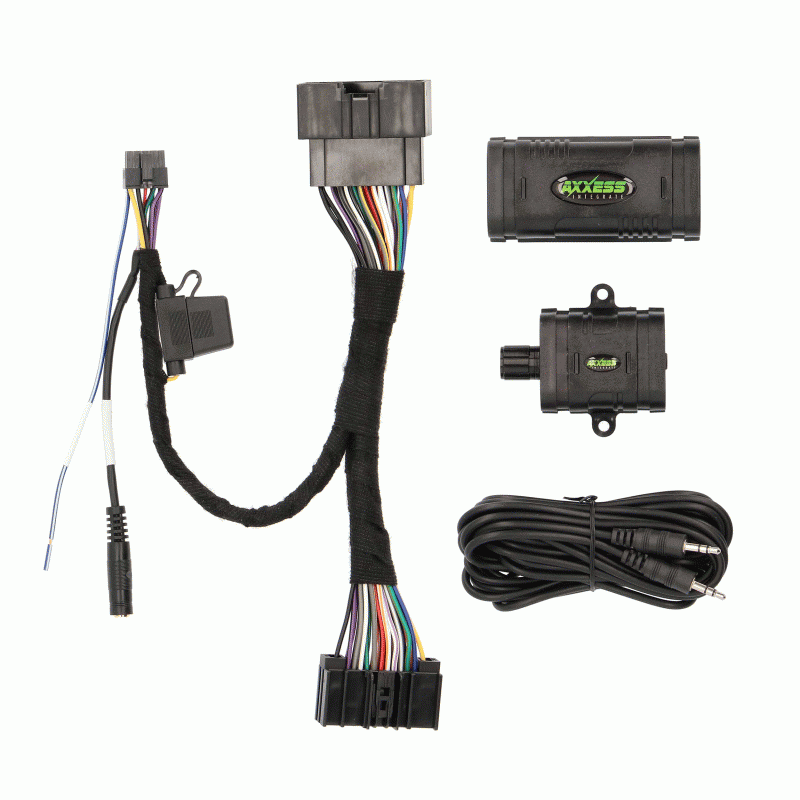

INTERFACE COMPONENTS

  • AXLOC-FD2 Wiring Harness
  • Gain Controller
  • 12v-500mA Remote Wire
  • Auxiliary Cable
Applications

Ford

  • Edge 2011-2020
  • Escape 2013-2019
  • Explorer 2011-2019
  • F-150 2013-2020
  • F250/350/450/550 2017-2019
  • Fiesta 2011-Up*
  • Focus 2012-2018
  • Fusion 2013-2019
  • Mustang 2015-2020
  • Ranger 2019-2020
  • Transit 150/250/350 2015-2019
  • Transit Connect 2014-2018
