One Solution Provides Total Control

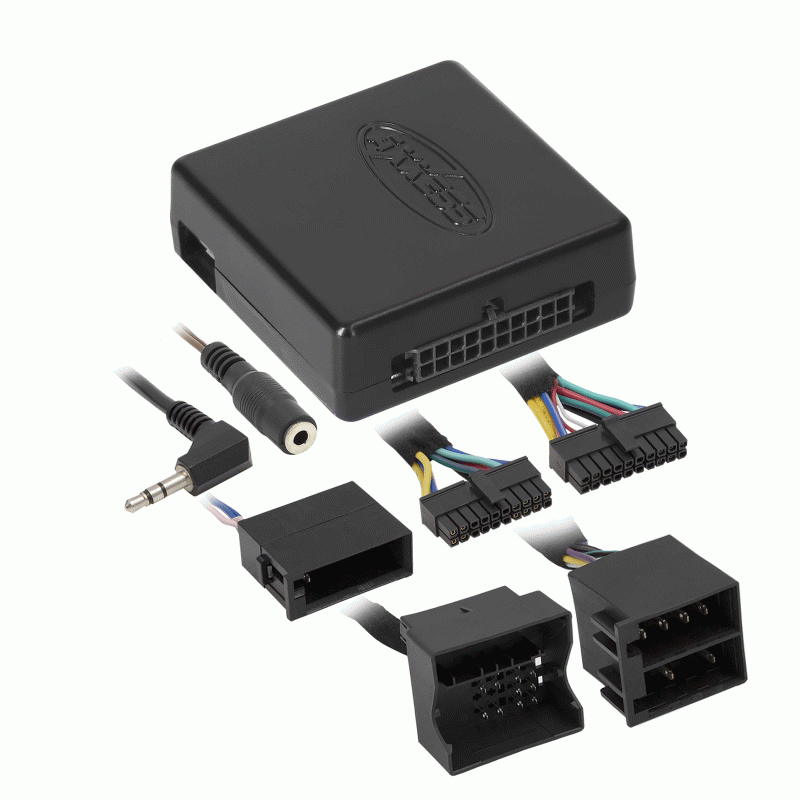

Axxess has engineered a new data interface that combines all of the features of the patented ASWC-1 with additional patent-pending features into one robust solution for new radio installations. When replacing a radio, the AXTC-1 utilizes patented Auto-Detect technology(1) that automatically detects the vehicle type, radio connection and preset controls, while allowing the ability to dual assign steering wheel controls. It provides NAV outputs, accessory power and a 12-volt illumination output, in addition to retaining R.A.P., balance and fade.

Compatible with More Radios and Vehicles

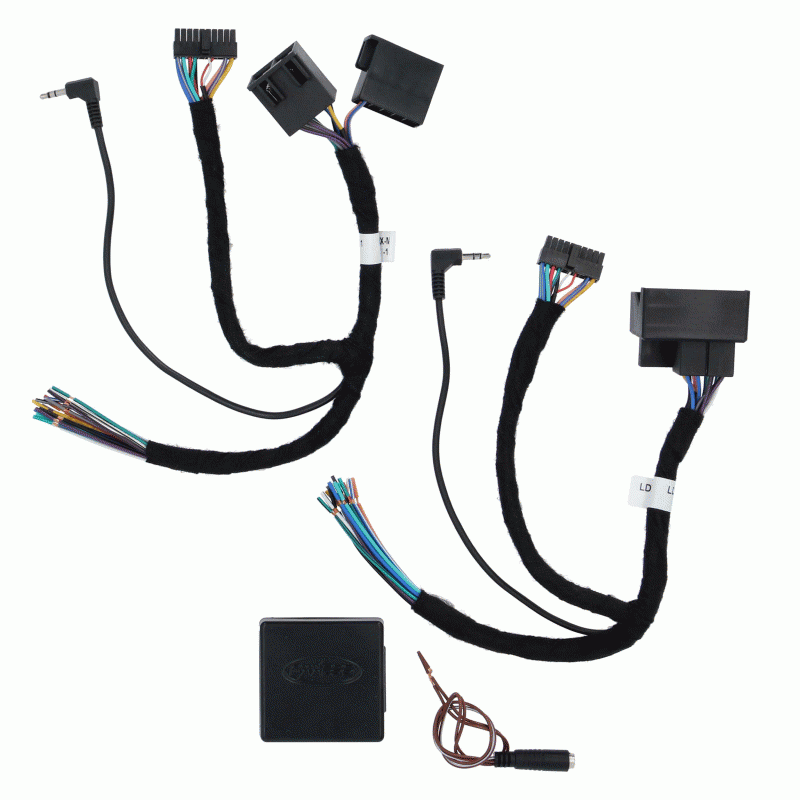

The Axxess Total Control Series is a universal solution designed to work with all major radio brands and both amplified and non-amplified audio systems. In addition to Auto-Detect, it can be manually programmed for most vehicles and will retain settings even after battery disconnection or interface removal. Additional vehicle-specific packages include harnessing for an easier installation.

Product Features:

• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides 12-volt illumination output
• Designed for non-amplified models
• Upgraded simple LED feedback
• Improved user-friendly instructions
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Retains balance and fade
• Designed to be compatible with all major radio brands

(1) U.S. Patent No.8257147

Mercedes Benz

• C Class 2001-2004
• CLK Class 2004
• CLK500 2003
• CLK55 AMG 2003
• C Class 2005-2011
• CLK Class 2005-2009
• E Class 2010-up
• G Class 2007-2012
• GLK Class 2010-2012
• R Class 2006-2011
• SLK Class 2005-2011
• Sprinter 2010-2018
