Axxess Digital Signal Processor (AX-DSP) Overview by Metra Electronics

AXDSPX-FD1

Axxess DSP Package Fits Select Ford 2006-2014

MSRP $529.00 UPC 086429386567

Upgrade your sound system with this cost-effective, easy-to-install DSP package that includes a vehicle-specific T-harness.

Complete Tuning Control
Installers will have full control to fine-tune each of the 10 channel outputs individually, controlled wirelessly via a free app available for smartphones and tablets. The app makes tuning easy with a 31-band graphic EQ and up to 10ms time delay for each channel, with independent high pass, low pass, and bandpass filters.

Retain Features with a Built-in Interface
Utilizing Axxess’s data interface technology, the AXDSP-X goes beyond what a traditional DSP can do and retains many of the features commonly lost when upgrading a sound system. Voice prompts, parking sensor chimes, and other factory chimes are retained with an adjustable volume control that many traditional DSPs cannot offer. This is a cost-effective solution for customers who want to retain their factory radio and improve their vehicle sound quality, while still retaining systems like SYNC® or OnStar®.

One Solution, Many Applications
The AXDSP-X solution already works with a wide range of vehicle applications and systems, including OE or aftermarket radios, and fixed-level analog and/or digitally controlled amplified systems, in addition to non-amplified vehicles that do not have chimes. The AXDSP-X works with all the existing DSP T-harnesses and still offers the same easy installation behind the radio.

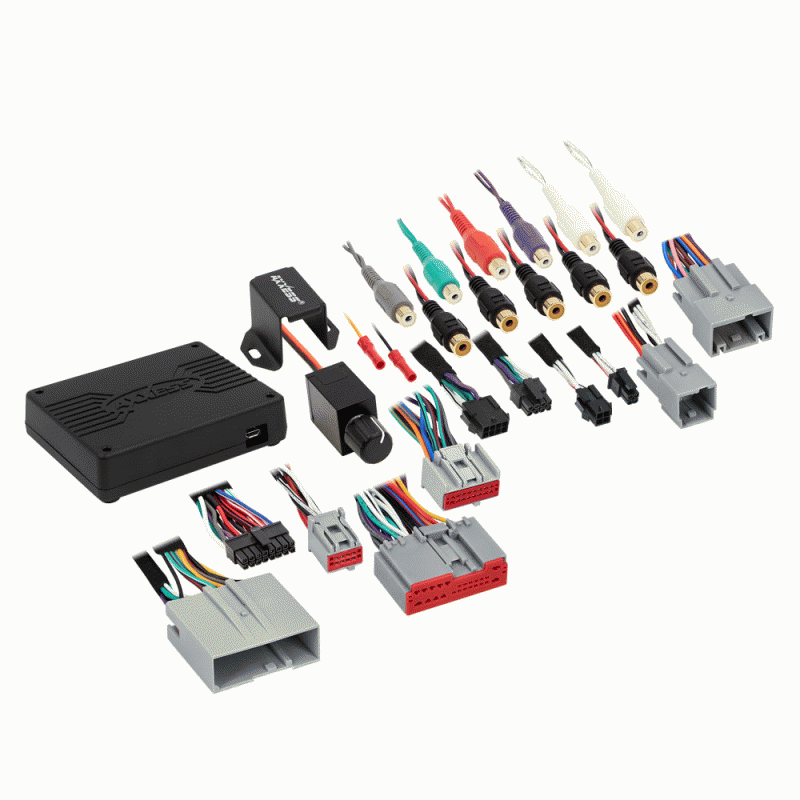

  • Package includes the AXDSP-X and vehicle-specific T-harness
  • 31-band graphic EQ or 5-band Parametric EQ
  • Selectable high pass, low pass, or bandpass filters on each channel
  • 6 inputs and 10 individually assignable outputs
  • Independent equalization on each of the 6 outputs
  • Selectable slope (12, 24, 36, or 48db per octave)
  • Each channel can be delayed independently for up to 10ms
  • Easy behind the radio installation in most applications
  • Can be used with OE and aftermarket radios
  • Clipping detection and limiting circuits
  • Internal header port for adding interface modules
  • Bass knob included
  • Retains OE voice prompts (Sync®)
  • Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
  • Designed for amplified and non-amplified models
  • Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
  • Read, write, and store configurations for future recall
  • Password-protect feature is available in the mobile app
  • Micro “B” USB updatable
  • 1-year limited warranty

U.S. Patent 9,875,078

Ford
  • Edge 2007-2010
  • Escape 2008-2012
  • Expedition 2007-2014
  • F-150 2006-2013
  • Flex 2009-2012
  • Focus 2008-2011
  • Fusion 2006-2012
  • Mustang 2006-201
  • Taurus 2008-2011
  • Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.

Click the button or scan the QR code to get the Axxess Interfaces App for Android™ or iOS®

————
