Amp Bypass Harness - Fits Honda Element 2003-2011

SKU: 70-1726
MSRP $71.99
Product Documents

More Product Info

Install a new car radio faster with this factory amplifier bypass harness, which plugs directly into the vehicle's connectors and powers the radio. On one side, the wiring harness is color-coded, with wires you'll connect or solder to the aftermarket radio/receiver. The other side has a vehicle-specific adapter that connects directly to the original radio connectors for a quicker installation without cutting each wire.

Keep in mind that you may need additional parts to complete your installation, including a dash kit, antenna adapter, and, depending on your vehicle, a special interface adapter to retain audio controls on your steering wheel or other essential vehicle functions like navigation, video, and more. Look up your vehicle for more information.

  • Factory amplifier bypass wiring harness for fast and easy radio installation
  • Plugs into the car's original radio connectors on one side as well as the factory amplifier
  • Factory subwoofer is not retained in select vehicles

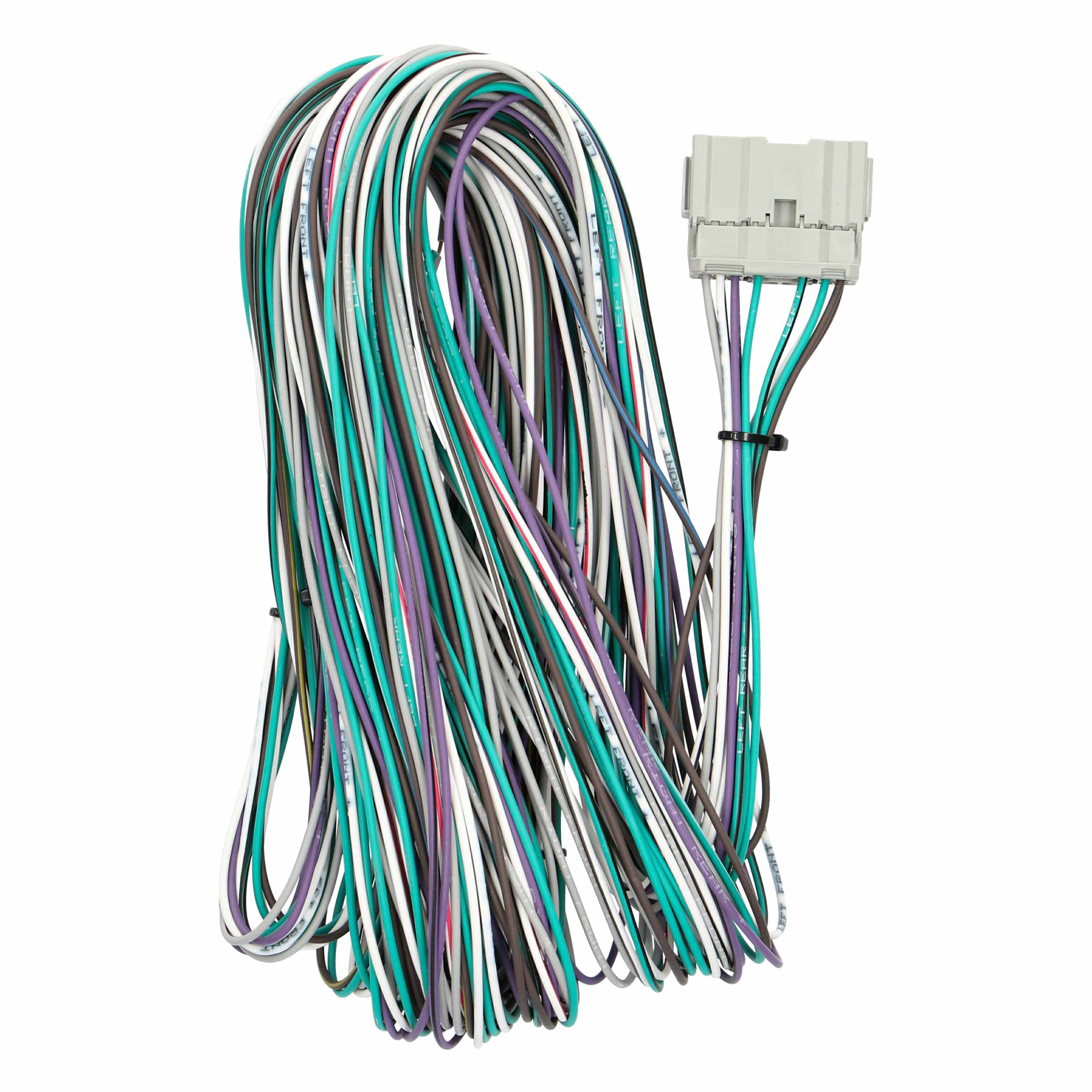

  • Harness length is 204"
  • Color-coded wires on the other side are connected to the aftermarket radio
  • No wire cutting needed for factory radio connectors
  • Provides electrical power to the radio
  • A tech support number is available for installation help 7 days a week



Factory Amp LocationPassenger Side Kick Panel


Wire Colors for Bypass Harness
Green / White Sub Coil 1(+)
White / Red Sub Coil 1 (-)
Brown / Yellow Sub Coil 2 (+)
Brown / Blue Sub Coil 2 (-)


  • The rest of the wire colors are standard EIA / Metra color code that can be found on the back of this package.


NOTE: Honda uses a dual voice coil sub-woofer that needs to be crossed over to avoid damage to it.


Visit our Vehicle Fit Guide for up-to-date vehicle-specific applications.

  • Honda
    • 2003-2011 Honda Element
