Metra Electronics

Camera Data Interface Fits Select Chrysler Models 2013-2023

SKU: AXAC-CH5

MSRP $345.99

More Product Info

Looking to add a backup camera or any CAN-activated camera to your factory radio screen? Axxess offers a plug-n-play interface, AXAC, for select vehicle applications that allow you to add up to 4 CAN-activated cameras. The AXAC package includes the interface and vehicle-specific harness. Check our Vehicle Fit Guide to see if an AXAC is available for your vehicle, as these products are dependent on the vehicle application.

Features:

Add multiple CAN-activated cameras with 4 camera inputs

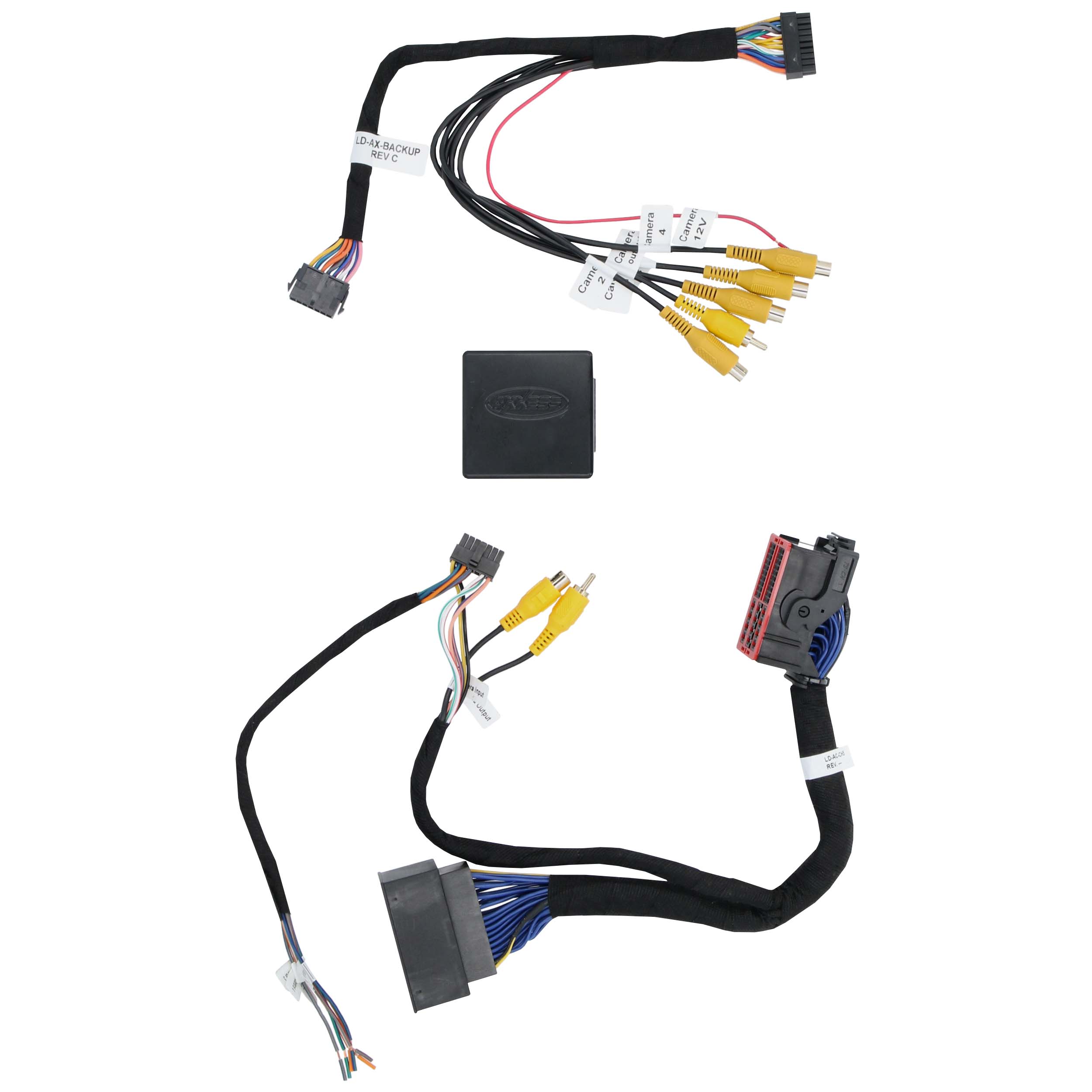

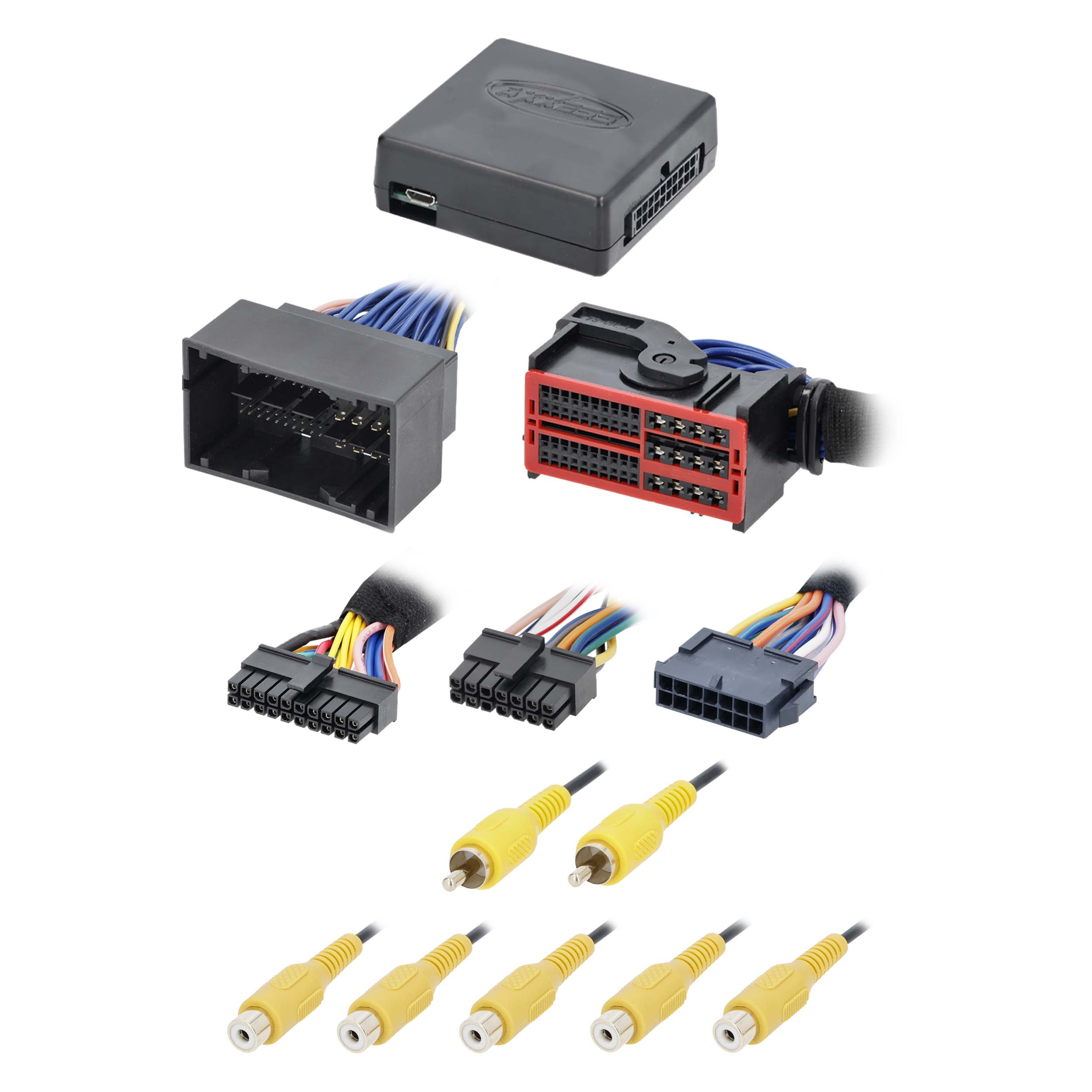

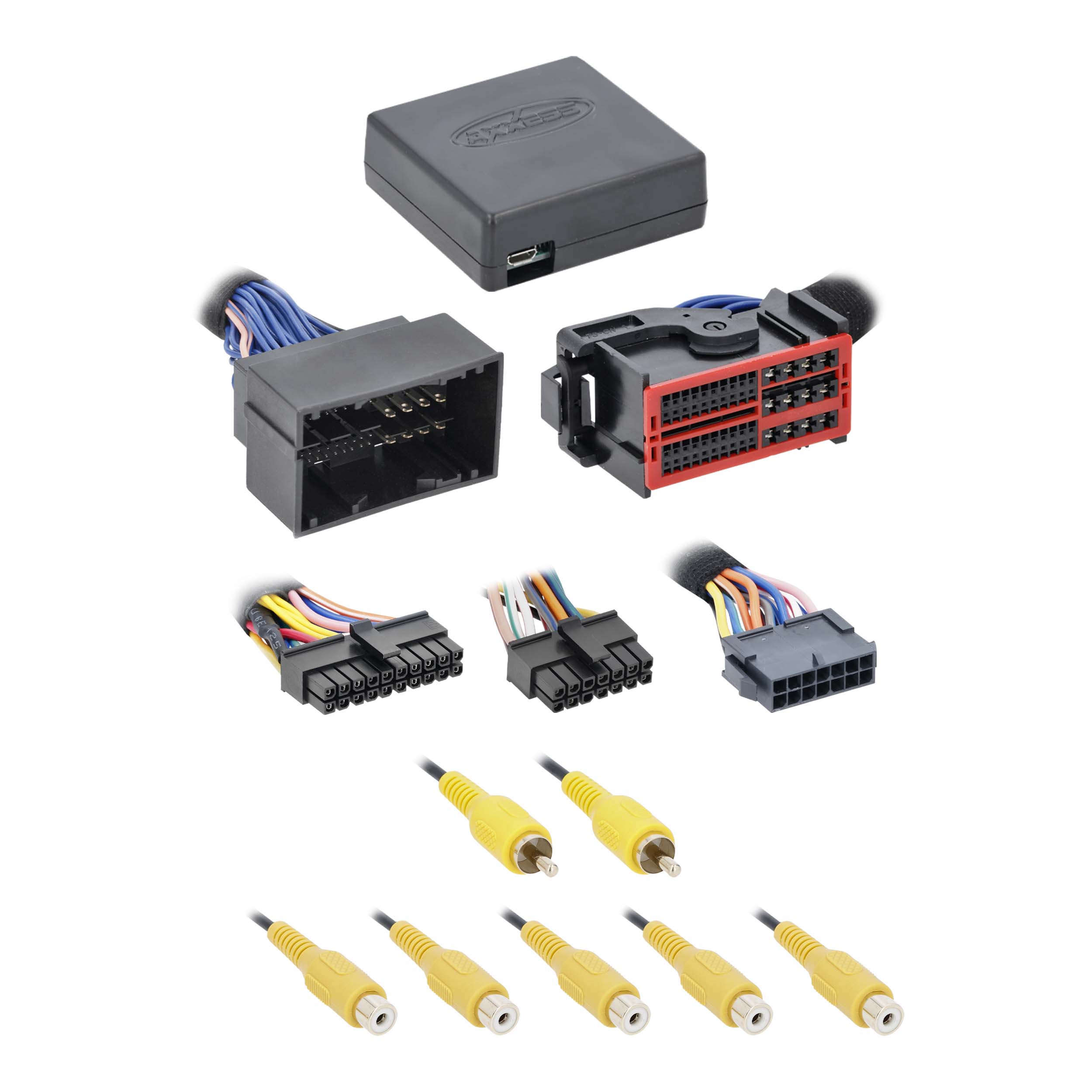

Includes AXAC camera interface and vehicle-specific harness
Programmable 12-volt 5-amp switched output (configured through the Axxess Updater program)
Reverse signal trigger generated via CAN bus communication of the vehicle
Turn signal trigger generated via CAN bus communication of the vehicle
4 programmable camera control wires (configured through the Axxess Updater program)
Can also be manually controlled and used along with an aftermarket radio
VSS (Vehicle Speed Sense) input and output
Micro “B” USB updatable

1-year limited warranty

Refer to our Vehicle Fit Guide for up-to-date vehicle-specific applications.

Dodge
- 2015-2023 Dodge Challenger
- 2015-2023 Dodge Charger
- 2014-2021 Dodge Durango
Jeep
- 2014-2021 Jeep Grand Cherokee
Ram
- 2013-2018 Ram 1500
- 2019 Ram 1500 Classic
- 2013-2018 Ram 2500
- 2013-2018 Ram 3500
