Axxess DSP Package with Water-Resistant Case

SKU: AXDSPX-WR
MSRP $593.99
Product Documents

More Product Info

Upgrade the sound system with this universal DSP designed for outdoor vehicles. It features a water-resistant enclosure and zip tie mounts to keep it in place and protected from the elements. This solution is ideal for motorcycles, powersports vehicles, boats, and other outdoor vehicles that could expose the DSP to moisture and heavy vibration. This DSP can be used with OE or aftermarket radios and has an internal header port for adding a wireless streaming interface module (the AXDSPL-BT, which is sold separately) if the vehicle does not have a receiver/head unit.

Complete Tuning Control
Installers will have full control to fine-tune each of the 10 channel outputs individually, controlled wirelessly via a free app available for smartphones and tablets. The app makes tuning easy with a 31-band graphic EQ and up to 10ms time delay for each channel, with independent high pass, low pass, and bandpass filters.

Retain Features with a Built-in Interface
Utilizing Axxess’s data interface technology, the AXDSP-X goes beyond what a traditional DSP can do and retains many of the features commonly lost when upgrading a sound system. Voice prompts, parking sensor chimes, and other factory chimes are retained with an adjustable volume control that many traditional DSPs cannot offer. This is a cost-effective solution for customers who want to retain their factory radio and improve their vehicle sound quality, while still retaining systems like SYNC® or OnStar®.

  • Designed for amplified and non-amplified models
  • Water-resistant enclosure with zip tie mounts included
  • Designed for motorcycle, UTV applications and more!
  • 31-band graphic EQ or 5-band Parametric EQ
  • Selectable high pass, low pass, or bandpass filters on each channel

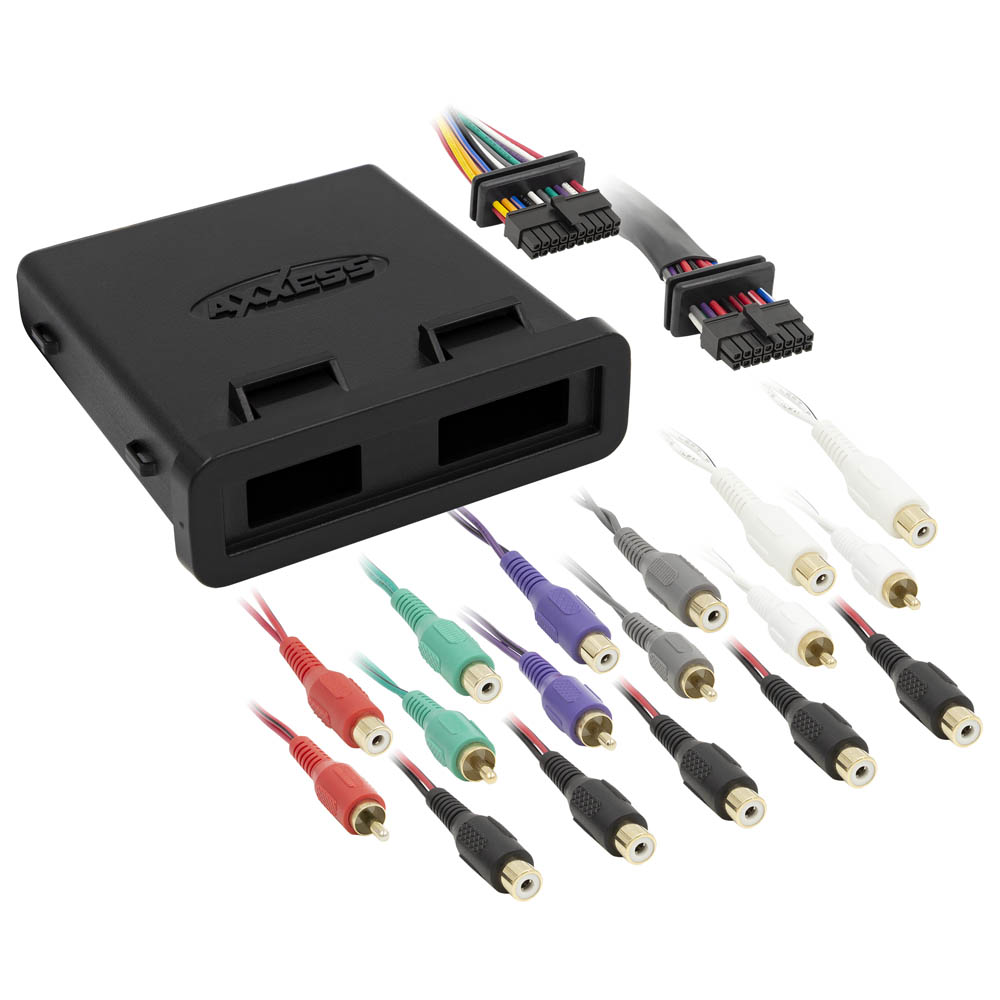

  • 6 inputs and 10 individually assignable outputs
  • Independent equalization on each of the 6 outputs
  • Selectable slope (12, 24, 36, or 48db per octave)
  • Each channel can be delayed independently for up to 10ms
  • Easy behind the radio installation in most applications
  • Can be used with OE and aftermarket radios
  • Clipping detection and limiting circuits
  • Internal header port for adding interface modules

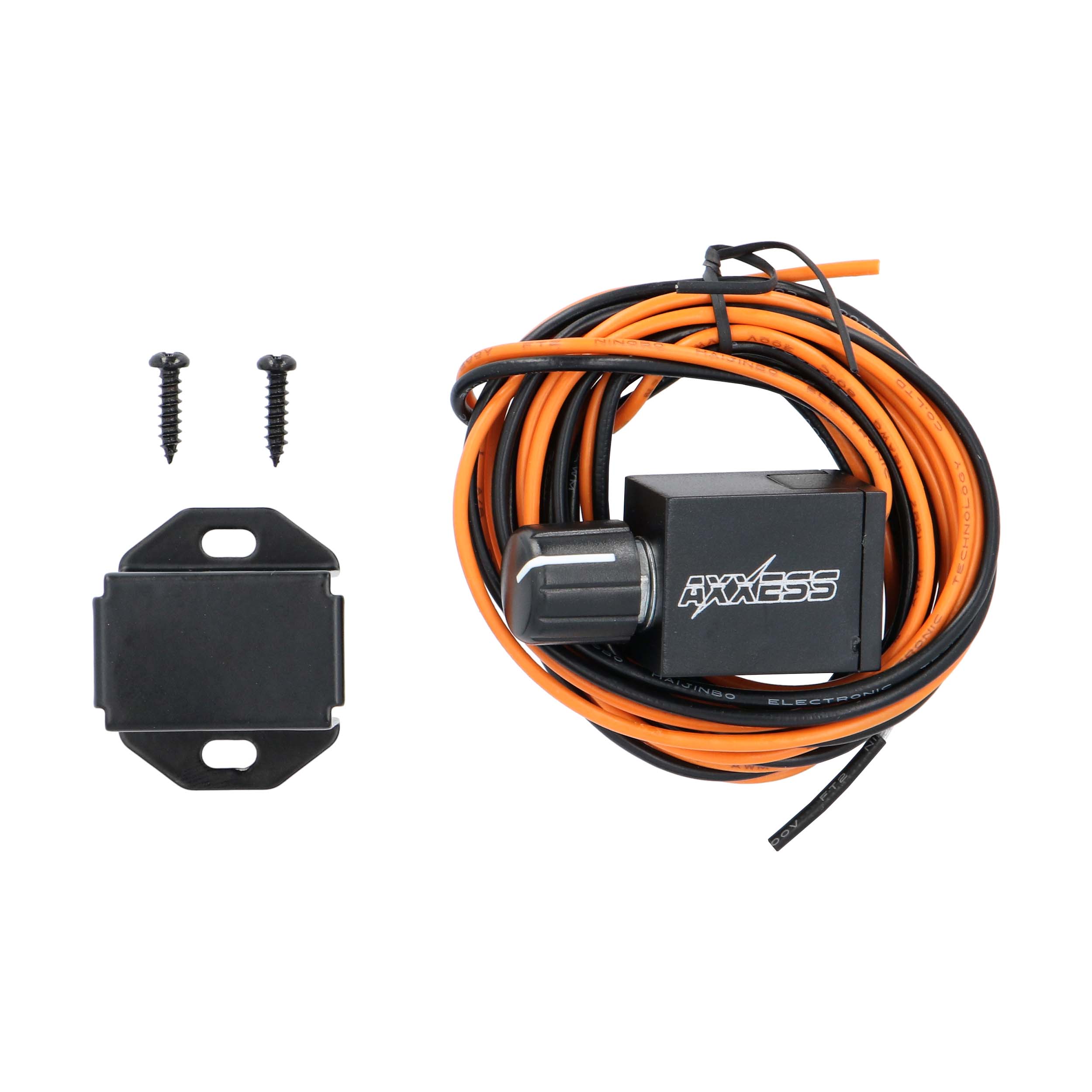

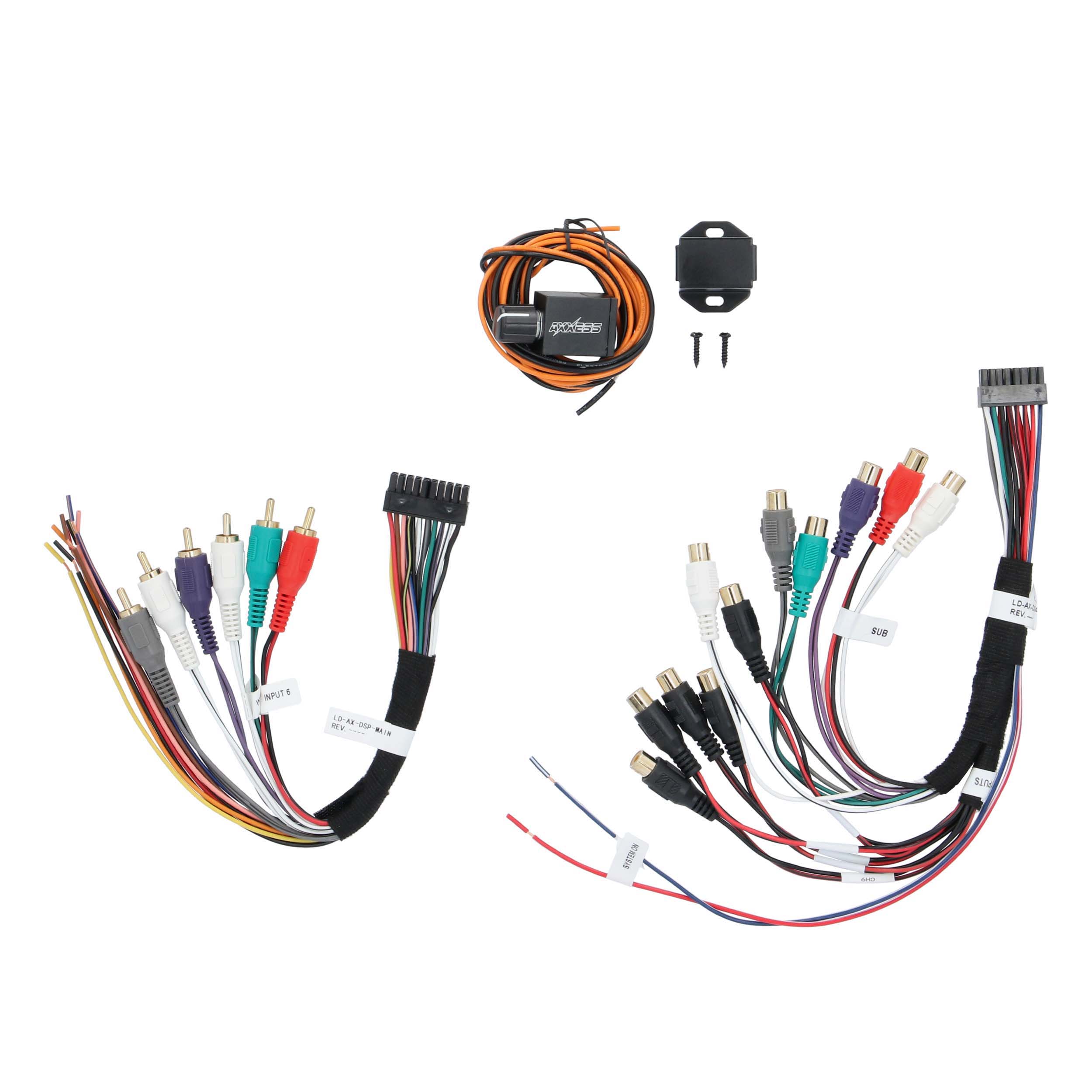

  • Bass knob included
  • Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
  • Read, write, and store configurations for future recall
  • Password-protect feature is available in the mobile app
  • Micro “B” USB updatable
  • 1-year limited warranty

U.S. Patent 9,875,078

  • Acura
    • 2009-2014 Acura TL
    • 2009-2014 Acura TSX
    • 2010-2013 Acura ZDX
  • Chevrolet
    • 2016-2017 Chevrolet Silverado 1500
    • 2016 Chevrolet Silverado 2500
    • 2016 Chevrolet Silverado 2500 HD
    • 2016 Chevrolet Silverado 3500
    • 2016-2017 Chevrolet Silverado 3500 HD
  • Chrysler
    • 2011-2014 Chrysler 300
    • 2017 Chrysler Pacifica
  • Dodge
    • 2008-2017 Dodge Challenger
    • 2011-2016 Dodge Charger
    • 2014-2018 Dodge Journey
  • Fiat
    • 2017 Fiat 500
  • Ford
    • 2014-2017 Ford Edge
    • 2010 Ford Escape
    • 2015-2017 Ford F-150
    • 2017 Ford Focus
    • 2017 Ford Fusion
    • 2017 Ford Mustang
    • 2015 Ford Taurus
  • Harley-Davidson
    • 1998-2006 Harley-Davidson FLHRCI Road King Classic
    • 2007-2013 Harley-Davidson FLHRC Road King Classic
    • 2000-2006 Harley-Davidson FLHRI Road King
    • 1998-2013 Harley-Davidson FLHR Road King
    • 2007 Harley-Davidson FLHRSE3 Screamin Eagle Road King
    • 2008 Harley-Davidson FLHRSE4 Screamin Eagle Road King
    • 2013 Harley-Davidson FLHRSE5 CVO Road King
    • 2003 Harley-Davidson FLHRSEI2 Screamin Eagle Road King 2
    • 2002 Harley-Davidson FLHRSEI Screamin Eagle Road King
    • 2004-2006 Harley-Davidson FLHRSI Road King Custom
    • 2004-2007 Harley-Davidson FLHRS Road King Custom
    • 1998-2013 Harley-Davidson FLHTC Electra Glide Classic
    • 1998-2006 Harley-Davidson FLHTCI Electra Glide Classic
    • 2005 Harley-Davidson FLHTCSE2 Screamin Eagle Electra Glide 2
    • 2004 Harley-Davidson FLHTCSE Screamin Eagle Electra Glide
    • 2007-2013 Harley-Davidson FLHTCU Electra Glide Ultra Classic
    • 1998-2006 Harley-Davidson FLHTCUI Electra Glide Ultra Classic
    • 2007 Harley-Davidson FLHTCUSE2 Screamin Eagle Ultra Classic Electra Glide
    • 2008 Harley-Davidson FLHTCUSE3 Screamin Eagle Ultra Classic Electra Glide
    • 2009 Harley-Davidson FLHTCUSE4 CVO Ultra Classic Electra Glide
    • 2010 Harley-Davidson FLHTCUSE5 CVO Ultra Classic Electra Glide
    • 2011 Harley-Davidson FLHTCUSE6 CVO Ultra Classic Electra Glide
    • 2013 Harley-Davidson FLHTCUSE8 CVO Ultra Classic Electra Glide
    • 2006 Harley-Davidson FLHTCUSE Screamin Eagle Ultra Classic Electra Glide
    • 1998-2009 Harley-Davidson FLHT Electra Glide Standard
    • 2006 Harley-Davidson FLHTI Electra Glide Standard
    • 2010-2013 Harley-Davidson FLHTK Electra Glide Ultra Limited
    • 2006 Harley-Davidson FLHXI Street Glide
    • 2011 Harley-Davidson FLHXSE2 CVO Street Glide
    • 2012 Harley-Davidson FLHXSE3 CVO Street Glide
    • 2010 Harley-Davidson FLHXSE CVO Street Glide
    • 2006-2013 Harley-Davidson FLHX Street Glide
    • 1998-2006 Harley-Davidson FLTRI Road Glide
    • 1998-2009 Harley-Davidson FLTR Road Glide
    • 2009 Harley-Davidson FLTRSE3 CVO Road Glide
    • 2001 Harley-Davidson FLTRSEI2 Screamin Eagle Road Glide 2
    • 2000 Harley-Davidson FLTRSEI Screamin Eagle Road Glide
    • 2011-2013 Harley-Davidson FLTRU Road Glide Ultra
    • 2011 Harley-Davidson FLTRUSE CVO Road Glide Ultra
    • 2010-2013 Harley-Davidson FLTRX Road Glide Custom
    • 2013 Harley-Davidson FLTRXSE2 CVO Road Glide Custom
    • 2012 Harley-Davidson FLTRXSE CVO Road Glide Custom
  • Honda
    • 2008-2017 Honda Accord
    • 2009-2017 Honda Civic
    • 2010-2018 Honda CR-V
    • 2011-2016 Honda CR-Z
    • 2009-2017 Honda Fit
    • 2016-2017 Honda HR-V
    • 2010-2014 Honda Insight
    • 2011-2017 Honda Odyssey
    • 2009-2016 Honda Pilot
    • 2009-2017 Honda Ridgeline
  • Jeep
    • 2016 Jeep Cherokee
      • Limited
    • 2014 Jeep Grand Cherokee
    • 2016-2017 Jeep Wrangler
    • 2018 Jeep Wrangler JK
  • Kia
    • 2014 Kia Cadenza
      • Limited
      • Touring
  • Nissan
    • 2009-2017 Nissan 370Z
    • 2007-2016 Nissan Altima
    • 2009-2014 Nissan Cube
    • 2008-2016 Nissan Frontier
    • 2011-2017 Nissan Juke
    • 2012-2017 Nissan LEAF
    • 2007-2013 Nissan Maxima
    • 2009-2014 Nissan Murano
    • 2012-2016 Nissan NV1500
    • 2012-2016 Nissan NV2500
    • 2012-2016 Nissan NV3500
    • 2008-2017 Nissan Pathfinder
    • 2011-2016 Nissan Quest
    • 2008-2016 Nissan Rogue
    • 2007-2017 Nissan Sentra
    • 2008-2017 Nissan TITAN
    • 2007-2017 Nissan Versa
    • 2014-2017 Nissan Versa Note
    • 2009-2015 Nissan Xterra
  • Ram
    • 2017 Ram 1500
  • Scion
    • 2013-2016 Scion FR-S
    • 2016 Scion iA
    • 2016 Scion iM
    • 2012-2015 Scion iQ
    • 2010-2016 Scion tC
    • 2010-2015 Scion xB
    • 2010-2014 Scion xD
  • Subaru
    • 2013-2017 Subaru BRZ
    • 2014-2018 Subaru Forester
    • 2012-2017 Subaru Impreza
    • 2012-2018 Subaru Legacy
    • 2012-2018 Subaru Outback
    • 2016-2017 Subaru WRX
    • 2016-2017 Subaru WRX STI
    • 2016-2018 Subaru XV
    • 2013-2015 Subaru XV Crosstrek
  • Toyota
    • 2010-2016 Toyota 4Runner
    • 2010-2016 Toyota Avalon
    • 2010-2018 Toyota Camry
    • 2010-2017 Toyota Corolla
    • 2011-2014 Toyota FJ Cruiser
    • 2013-2016 Toyota Highlander
    • 2011-2013 Toyota Matrix
    • 2010-2017 Toyota Prius
    • 2012-2016 Toyota Prius C
    • 2013-2016 Toyota Prius V
    • 2012-2016 Toyota RAV4
    • 2013-2016 Toyota Sequoia
    • 2011-2016 Toyota Sienna
    • 2012-2016 Toyota Tacoma
    • 2014-2016 Toyota Tundra
    • 2013-2015 Toyota Venza
    • 2012-2016 Toyota Yaris
