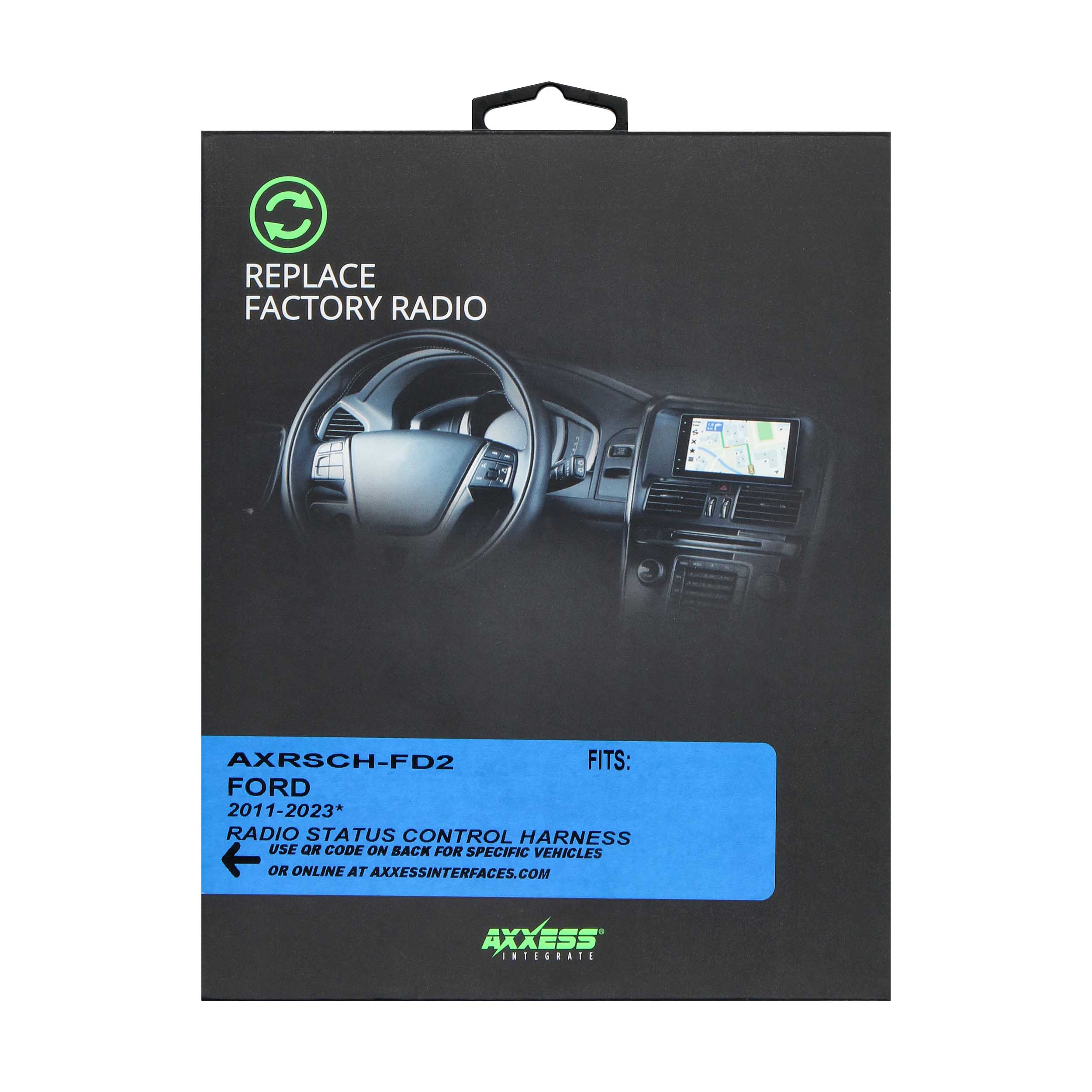

Radio Status Control Harness – Fits Ford 2011-2023

This vehicle-specific radio status control harness is designed for broad compatibility with a wide range of radio brands and models, making it ideal for integrating radios purchased from online retailers. Vehicle information and settings controlled on the factory screen are retained, displayed, and controlled on the aftermarket screen. These functions are typically lost when the head unit is replaced. Built-in integration technology retains audio controls on the steering wheel, retains R.A.P. (Retained Accessory Power), and provides accessory power (12-volt 10-amp) and NAV outputs for parking brake, reverse, and speed sense. This harness must be used with the AXRSC radio status control interface (sold separately). Radio-specific accessory harnesses are also available for purchase for a complete plug-n-play installation.

Features:

• AXRSC radio status control interface required
• Designed for select aftermarket radios
• Designed for non-amplified vehicles
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Allows a visual of HVAC and gauges on the aftermarket radio screen*
• Allows adjustment of HVAC functions through aftermarket radio screen*
• Retains audio controls on the steering wheel
• Allows for auto stop/start override (if equipped)
• Works in both single and dual-zone vehicles
• Allows the retention and adjustment of the OE personalization settings
• Plug-n-play installation
• 1-year warranty

*Features retained are dependent on the vehicle application. Refer to vehicle-specific instructions for details.

Includes:

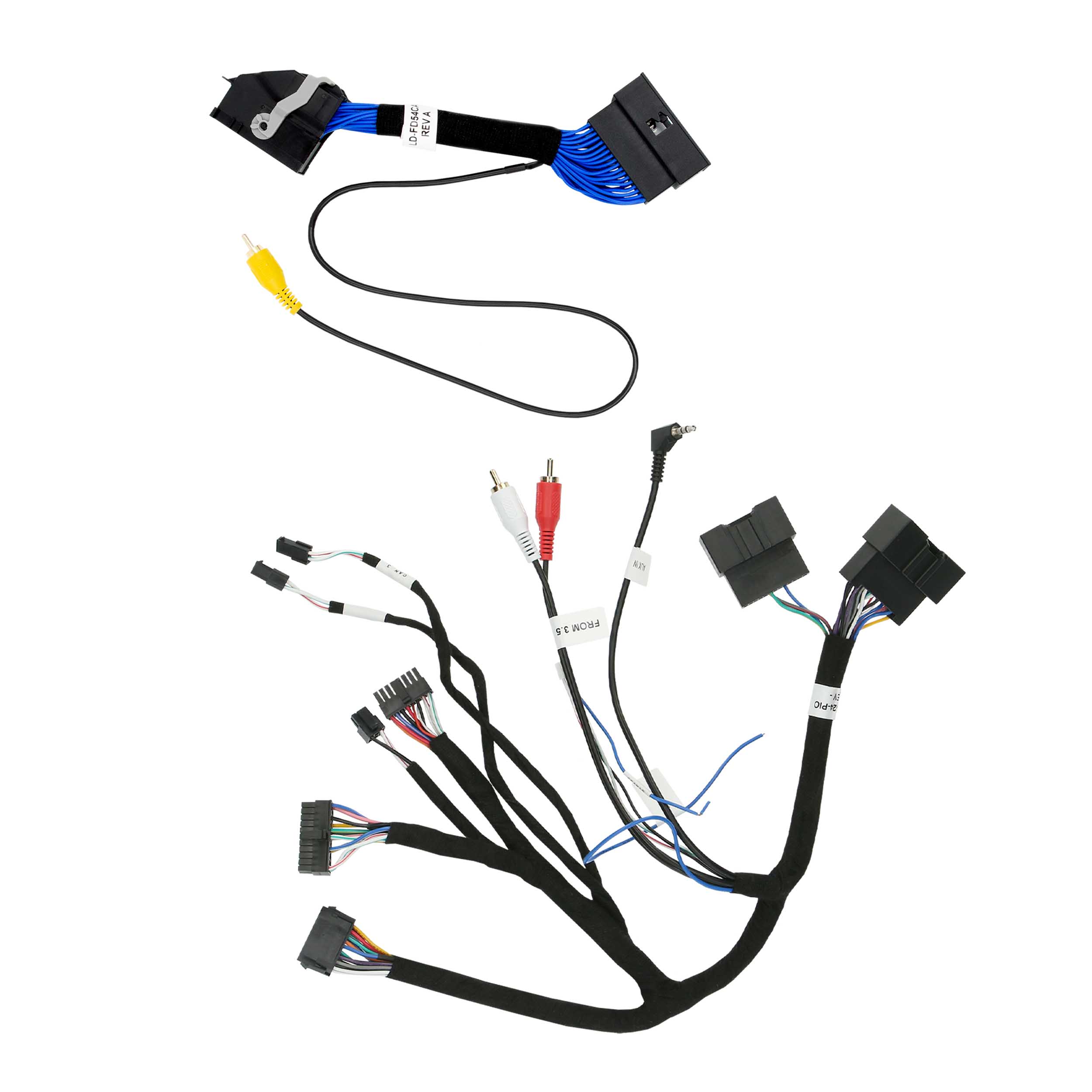

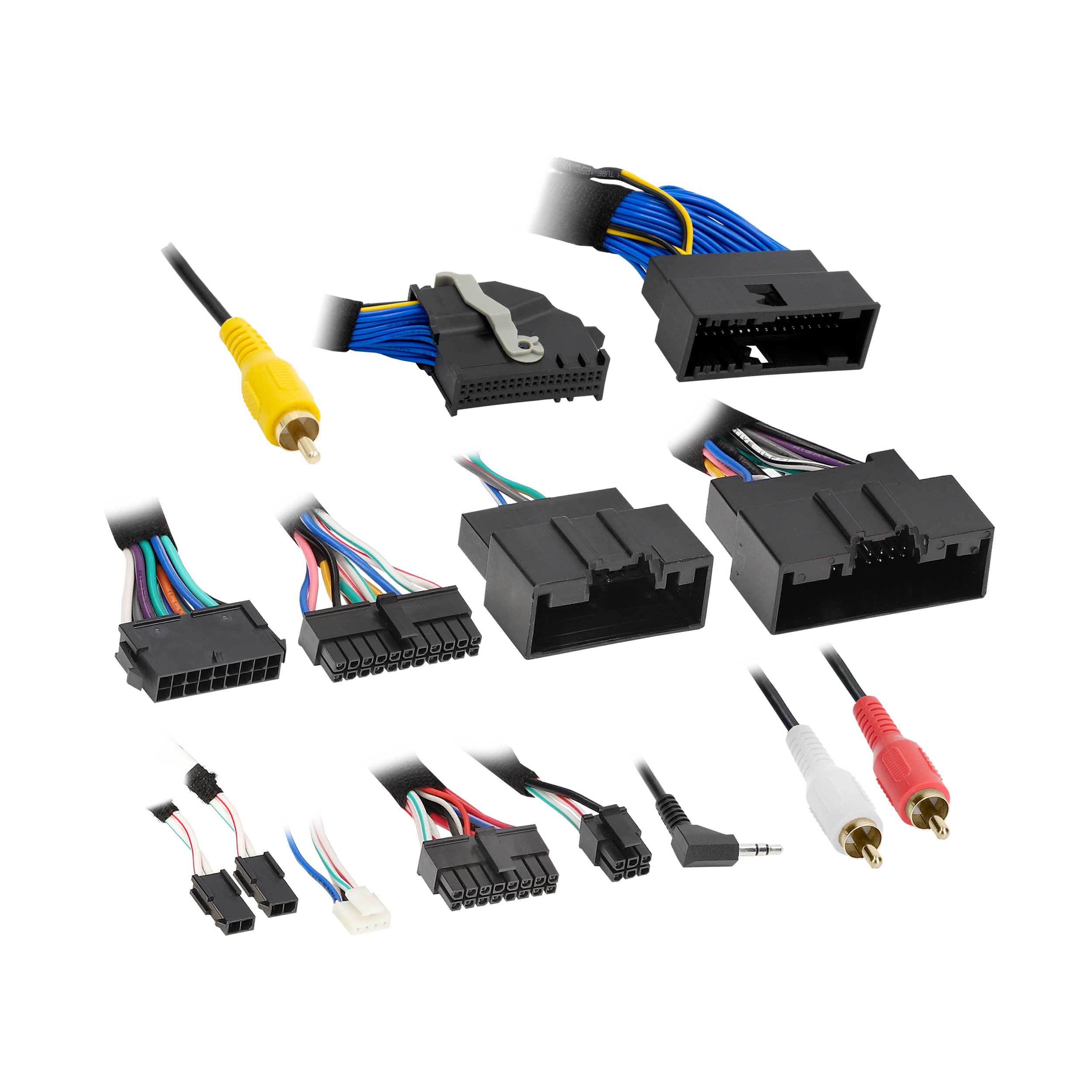

• Vehicle-specific harness
• Vehicle-specific camera harness
• ODB harness
• Step-by-step instructions
