The daytime running lights can be lit without the off-road lights being on and are powered by 6V to 24V circuits, using new 3-wire DT3 and ATP3 plugs and pigtails. Rated IP67 with a military grade metal breather port that allows moisture to escape. Built to last, featuring Heise proprietary torture-tested heavy-duty construction with a virtually unbreakable polycarbonate lens, backed by a limited lifetime warranty.
Specifications
- Input Voltage: 10-30V DC
- Power Consumption: 36W
- (12-3W white LEDs)
- Current Consumption: 2.6 amps at 13.8 volts
- Raw Lumen: 2880 LM
- Lux at 10m: 215 (white LEDs only)
- Color Temperature: 6000K
- Beam Pattern: Combo flood (90 degree) / spot (8 degree)
Construction
- Housing Material: Die-cast aluminum
- Housing Color: Black
- Lens Material: Polycarbonate
- Mounting Bracket: Die-cast aluminum

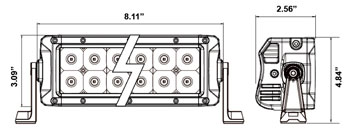

- Hole Dimensions: Brackets Turned Inward – 7.25”
- Brackets Turned Outward – 9.5”
- Mounting Bolt Drill – .25”
- Height: 3”
- Depth: 2.5”
- Length (without mounting brackets): 8”
- Electronics: Integrated-epoxy encapsulated
- Hardware: Stainless 316
Operation
- Operating Temperature: -40 degrees C to +60 degrees C
- IP Rating: IP67
- Protections: Reverse Polarity
Vehicle compatibility information is not currently listed. This may be a universal part or details are being updated.
Have questions about fitment? Contact our tech support.
