Stock No. AXDSPL-CH8

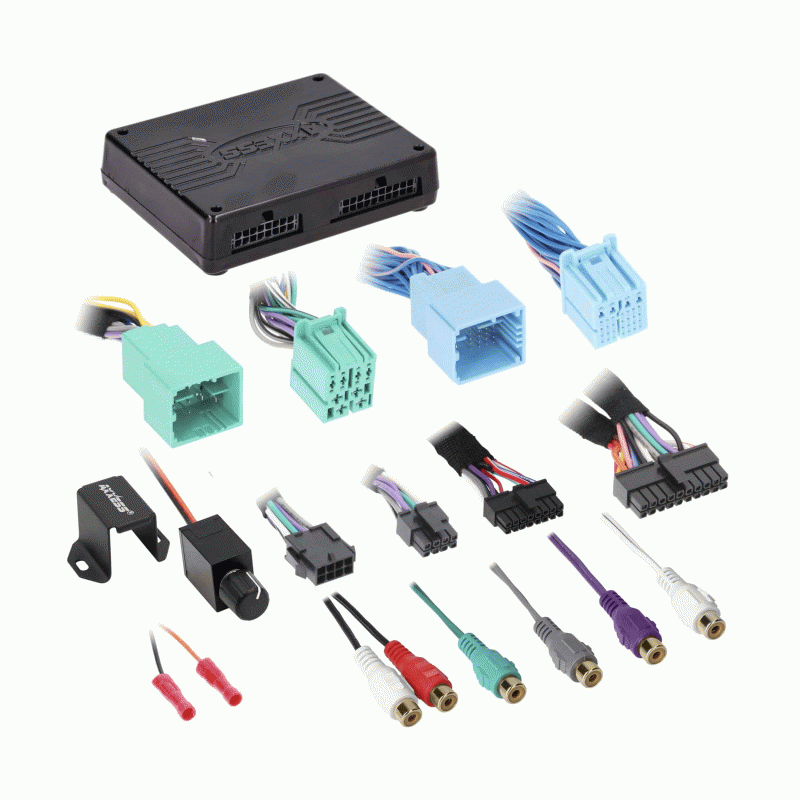

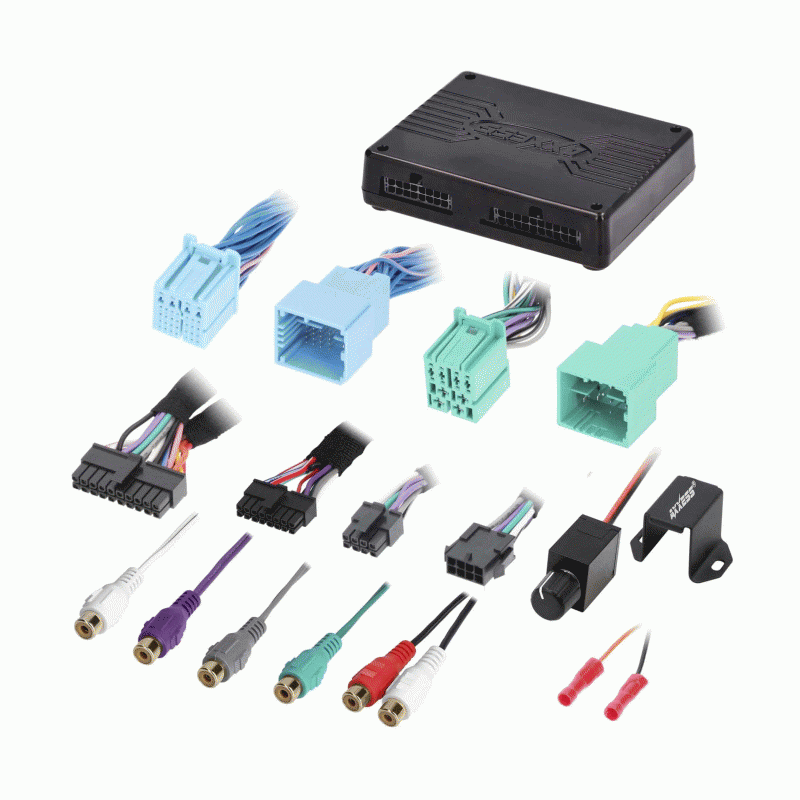

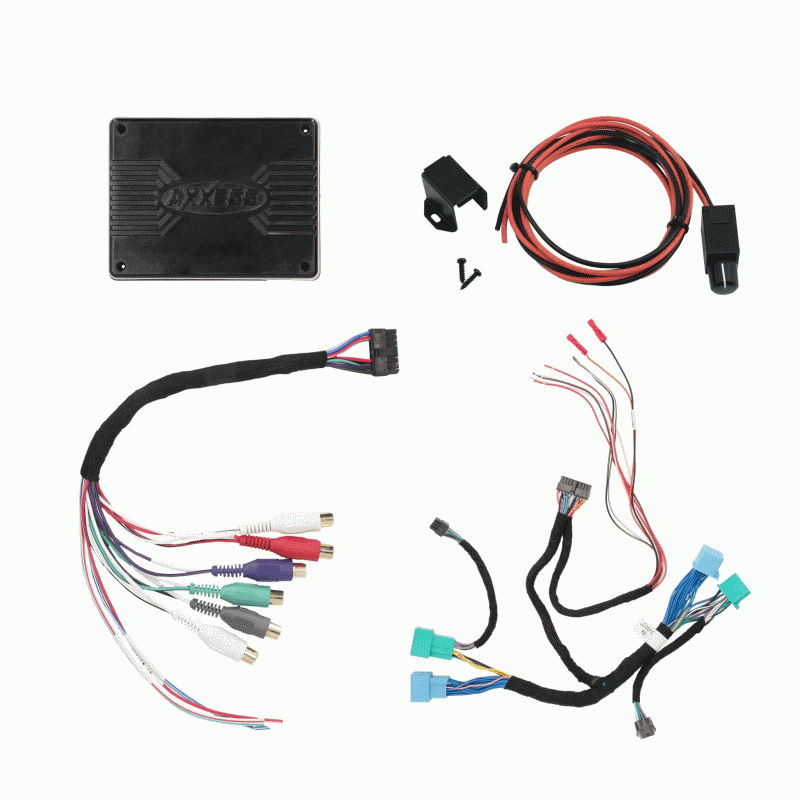

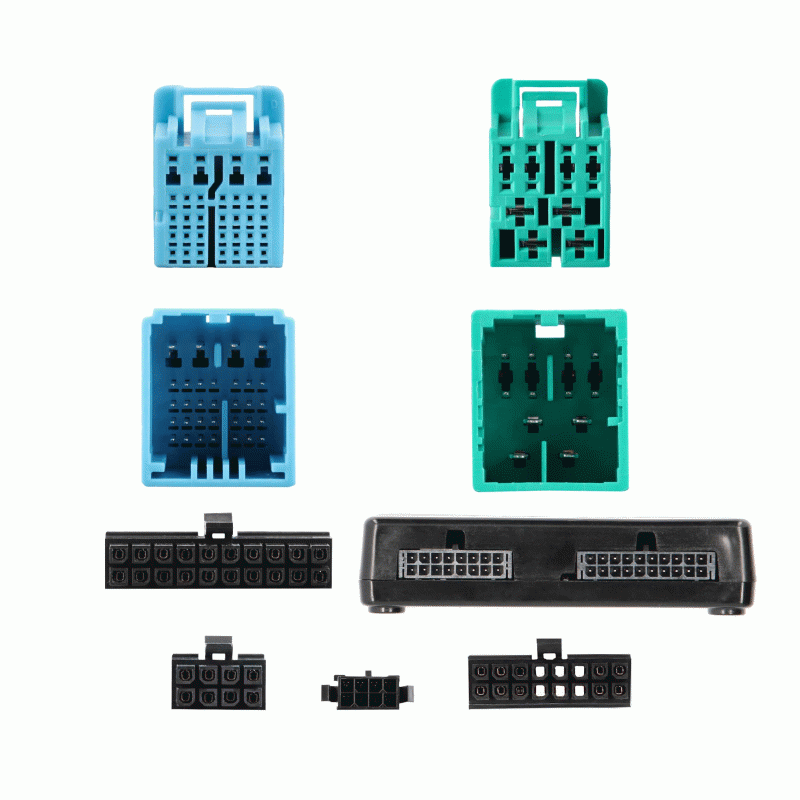

DSP-L Package With T-Harness - Fits Chrysler 2020-Up

Description

Not every sound system will utilize all the features of the AXDSP-X, so we created a “Lite” option to provide just the essentials while still retaining important vehicle functions. Use the AXDSP-L with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to six channels of analog signal for use with an aftermarket amplifier or DSP. While this may be a “Lite” version, it still provides retention of many important vehicle functions. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits. There are four inputs and six outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10 ms.

  • Includes a DSP (Digital Signal Processor)
  • Selectable 15-band graphic EQ or 5-band parametric EQ
  • 4 inputs and 6 individually assignable outputs
  • Independent equalization for front, rear, and sub
  • Selectable low pass, band pass, and high pass filters
  • Selectable crossover slopes; 12db, 24db, 36db, 48db
  • Each channel can be delayed independently up to 10ms
  • Clipping detection and limiting circuits
  • Can be used in amplified and non-amplified models
  • Easy installation behind the radio with a pre-wired harness
  • Internal header port for adding interface modules
  • Bass knob included for level control of subwoofer amp
  • Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone)
  • Compatible with both Android and Apple devices
  • Read, write, and store configurations for future recall
  • Password protect feature available in the mobile app
  • Micro “B” USB updatable
  • 1-year limited warranty

U.S. Patent 9,875,078

Applications

Chrysler

  • Pacifica 2021-2022

Dodge

  • Durango 2021-2022
  • Voyager 2022

Jeep

  • Compass 2022
  • Grand Wagoneer 2022

RAM

  • 1500 2022
  • 2500/3500 2022
  • Promaster 2022

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.
