Upgrade the sound system with this cost-effective, easy-to-install DSP “Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.

Retain Features with a Built-in Interface
While this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.

Complete Tuning Control
There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.

• Designed for amplified and non-amplified models

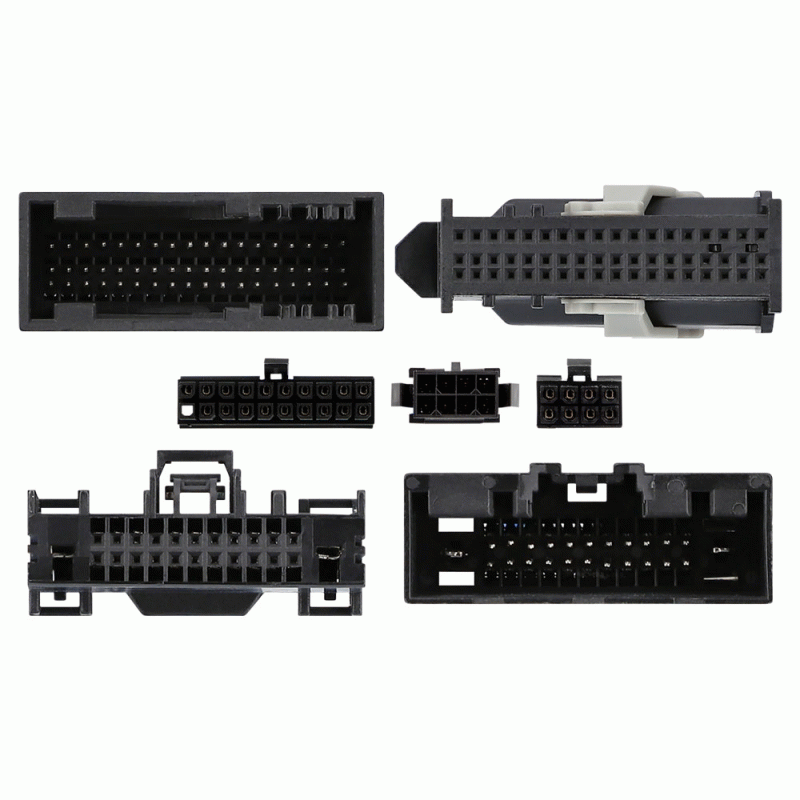

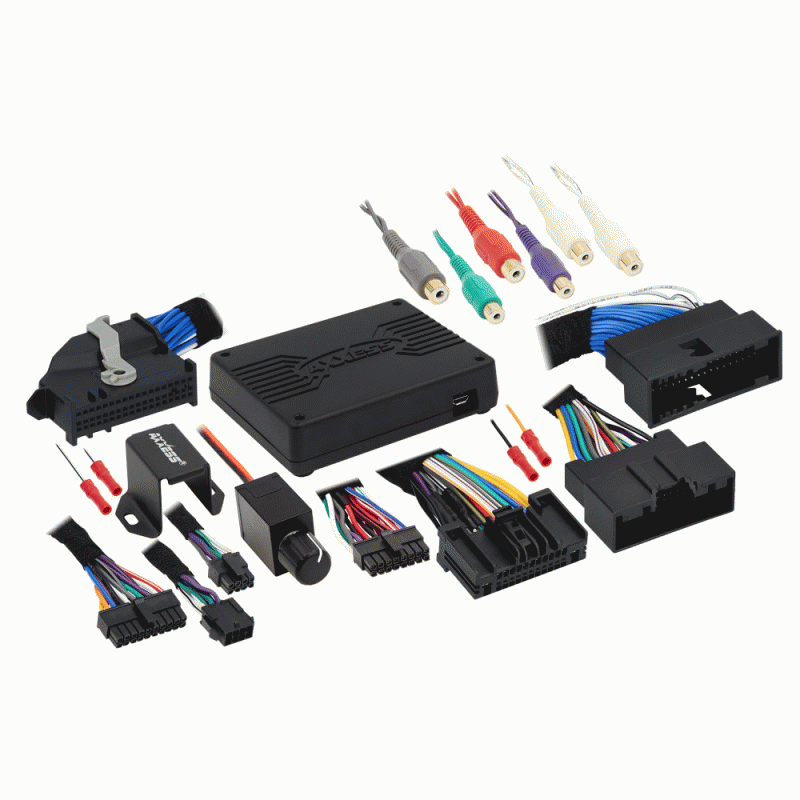

• Package includes the AXDSP-L and vehicle-specific T-harness
• 15-band graphic EQ or 5-band Parametric EQ
• Selectable high pass, low pass, or bandpass filters on each channel
• 4 inputs and 6 individually assignable outputs
• Independent equalization on each of the 6 outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Each channel can be delayed independently for up to 10 ms
• Easy behind the radio installation in most applications
• Can be used with OE and aftermarket radios
• Clipping detection and limiting circuits
• Internal header port for adding interface modules
• Bass knob included
• Retains OE voice prompts (Sync®)
• Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
• Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
• Read, write, and store configurations for future recall
• Password-protect feature is available in the mobile app
• Micro “B” USB updatable
• 1-year limited warranty

U.S. Patent 9,875,078

Ford

• CMAX 2013-2017
• EcoSport 2016-2019
• Edge 2011-Up*
• Edge SEL (8” screen) 2014
• Edge Titanium (8” screen Sony) 2017
• Escape 2015-2019
• Expedition 2015-2017
• Explorer 2011-2019
• F-150 2014-2020*
• F-350 2019
• Fiesta 2011-Up
• Flex 2013-Up
• Focus 2013-Up*
• Focus SE (4 inch screen) 2017
• Focus Titanium (8” screen) 2017
• Fusion 2013-Up*
• Fusion SE (6×9 amplified rear deck speakers) 2017
• Mustang 2015-2023
• Ranger 2019-Up (w/ B&O)
• Taurus 2013-Up*

• Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.

Click the button or scan the QR code to get the Axxess Interfaces App for Android™ or iOS®

————
