Stock No. AXDSPL-GL9

Axxess DSP “Lite” Package Fits Select GM 2014-2020

Description

Upgrade the sound system with this cost-effective, easy-to-install DSP “Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.

Retain Features with a Built-in Interface
While this may be a “Lite” version, it still provides retention of many important vehicle functions utilizing Axxess’s cutting-edge technology. It features chime control, retains OEM voice prompts and sonar sensors, and has clipping detection and limiting circuits, going beyond what a traditional DSP can do.

Complete Tuning Control
There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.

o Designed for non-amplified models only

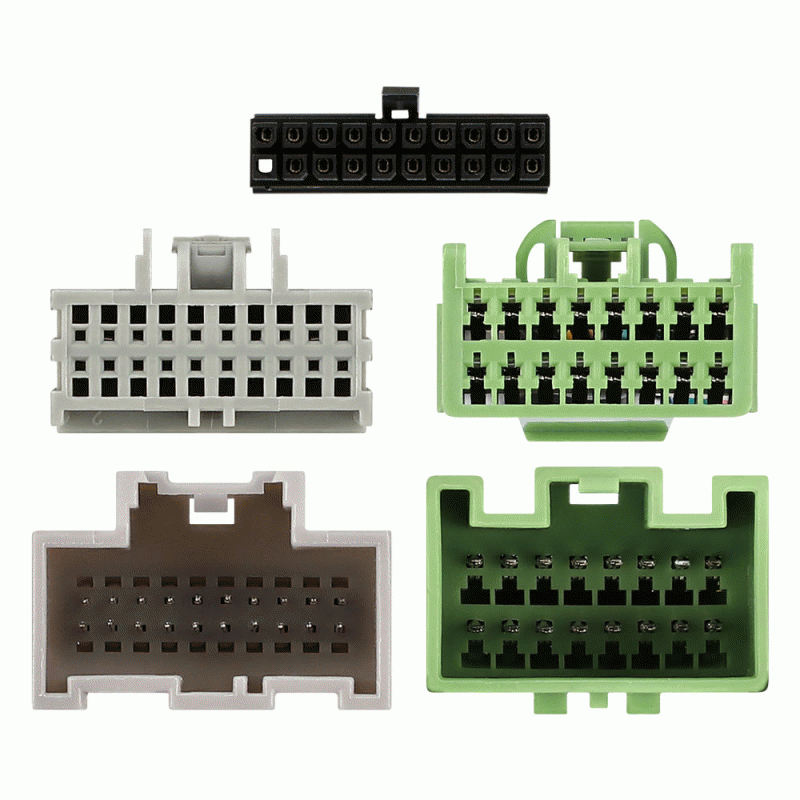

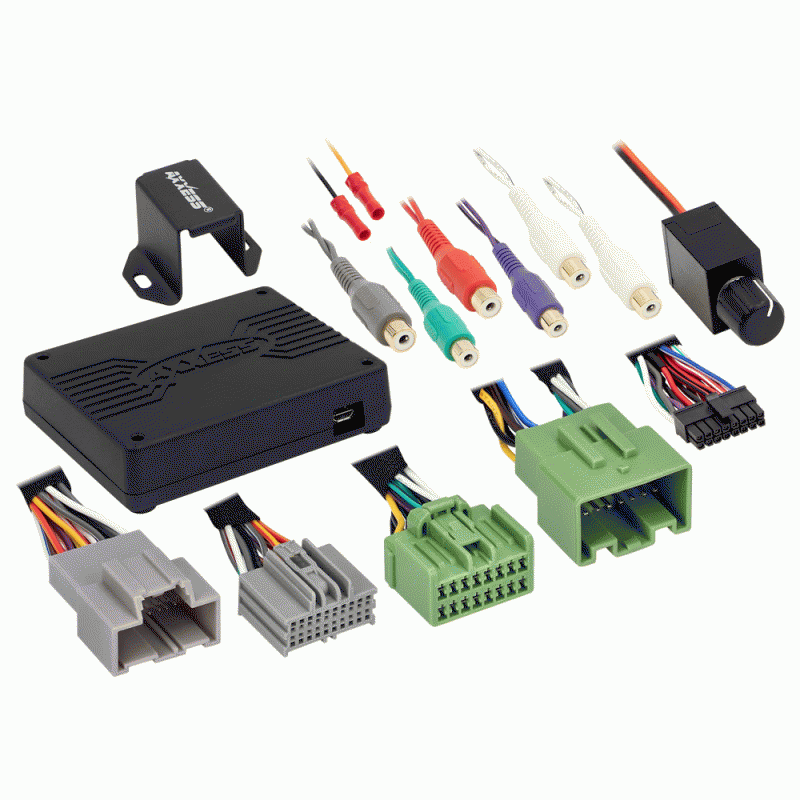

o Package includes the AXDSP-L and vehicle-specific T-harness
o 15-band graphic EQ or 5-band Parametric EQ
o Selectable high pass, low pass, or bandpass filters on each channel
o 4 inputs and 6 individually assignable outputs
o Independent equalization on each of the 6 outputs
o Selectable slope (12, 24, 36, or 48db per octave)
o Each channel can be delayed independently for up to 10 ms
o Easy behind the radio installation in most applications
o Can be used with OE and aftermarket radios
o Clipping detection and limiting circuits
o Internal header port for adding interface modules
o Bass knob included
o Retains OE voice prompts (OnStar®)
o Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
o Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
o Read, write, and store configurations for future recall
o Password-protect feature is available in the mobile app
o Micro “B” USB updatable
o 1-year limited warranty

U.S. Patent 9,875,078

Applications

Chevrolet (non-amplified)

  • Colorado 2015-2019 (RPO: IO5 or IO6)
  • Cruze 2016-2018 (RPO: IO5 or IO6)
  • Equinox 2018 (RPO: IO5 or IO6)
  • Malibu 2016-2018 (RPO: IP1)
  • Silverado LD 2019 (RPO: IO5 or IO6)
  • Silverado 2014-2018 (RPO: IO3 , IO5 or IO6)
  • Suburban 2015-2020
  • Tahoe 2015-2020

GMC (non-amplified)

  • Canyon 2015-2018 (RPO: IO5 or IO6)
  • Sierra Limited 2019 (RPO: IO5 or IO6)
  • Sierra 2014-2018 (RPO: IO3 , IO5 or IO6)
  • Yukon 2015-2018

  • Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.
