The AXDSP-X offers installers a fast, cost-effective solution for improving the sound system with 10 individually assigned output channels, the ability to password-protect your settings, and an easy-to-use smartphone app. It has an onboard digital amplifier turn-on capability with built-in technology to retain many of the vehicle features commonly lost when installing a DSP.

Complete Tuning Control
Installers will have full control to fine-tune each of the 10 channel outputs individually, controlled wirelessly via a free app available for smartphones and tablets. The app makes tuning easy with a 31-band graphic EQ and up to 10ms time delay for each channel, with independent high pass, low pass, and bandpass filters.

Retain Features with a Built-in Interface
Utilizing Axxess’s data interface technology, the AXDSP-X goes beyond what a traditional DSP can do and retains many of the features commonly lost when upgrading a sound system. Voice prompts, parking sensor chimes, and other factory chimes are retained with an adjustable volume control that many traditional DSPs cannot offer. This is a cost-effective solution for customers who want to retain their factory radio and improve their vehicle sound quality, while still retaining systems like SYNC® or OnStar®.

One Solution, Many Applications
The AXDSP-X solution already works with a wide range of vehicle applications and systems, including OE or aftermarket radios, and fixed-level analog and/or digitally controlled amplified systems, in addition to non-amplified vehicles that do not have chimes. The AXDSP-X works with all the existing DSP T-harnesses and still offers the same easy installation behind the radio.

See the AXDSP-X application chart for up-to-date vehicle-specific information.

• Designed for MOST25® amplified sound systems
• Includes a DSP (Digital Signal Processor)
• Selectable 31-band graphic EQ or 5 Band Parametric EQ
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and bandpass filters
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits

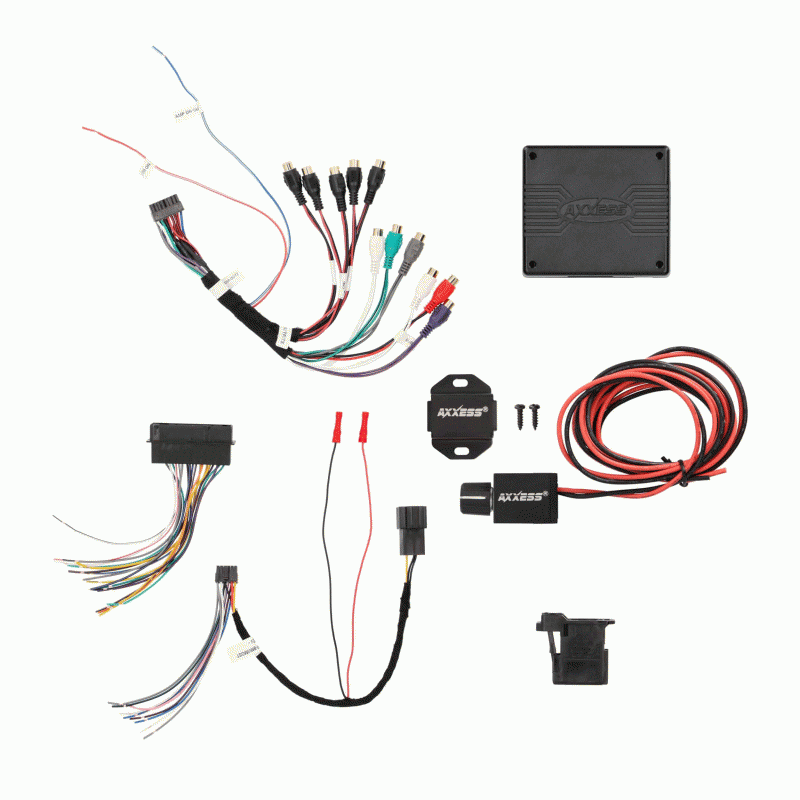

• Includes an amplifier bypass harness
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth® in a smart device application (tablet or mobile phone)
• Compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro “B” USB updatable
• 1-year limited warranty

U.S. Patent 9,875,078

BMW

• 1 Series 2010-2013*
• 2 Series 2014-2020*
• 3 Series 2011-2018*
• 4 Series 2014-2020*
• 5 Series 2010-2016*
• 6 Series 2010-2017*
• 7 Series 2010-2015*
• X1 2015-2020
• X3 2010-2018
• X4 2015-2018
• X5 2014-2018
• X6 2015-2019

* MOST Amplified, (excluding ID7/ID8 radios)

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.
