Stock No. AXDSPX-ETH1

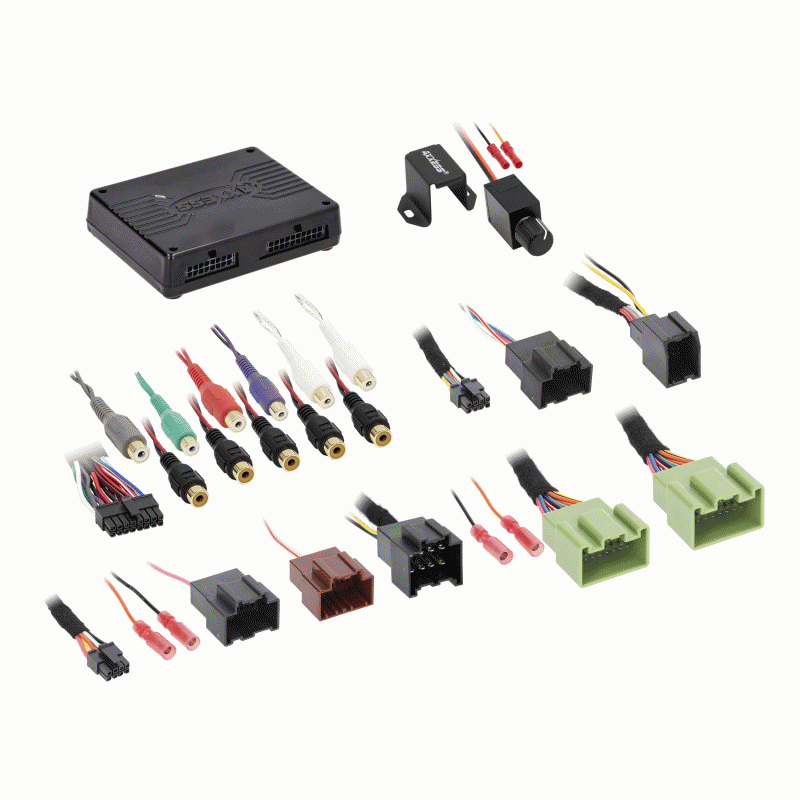

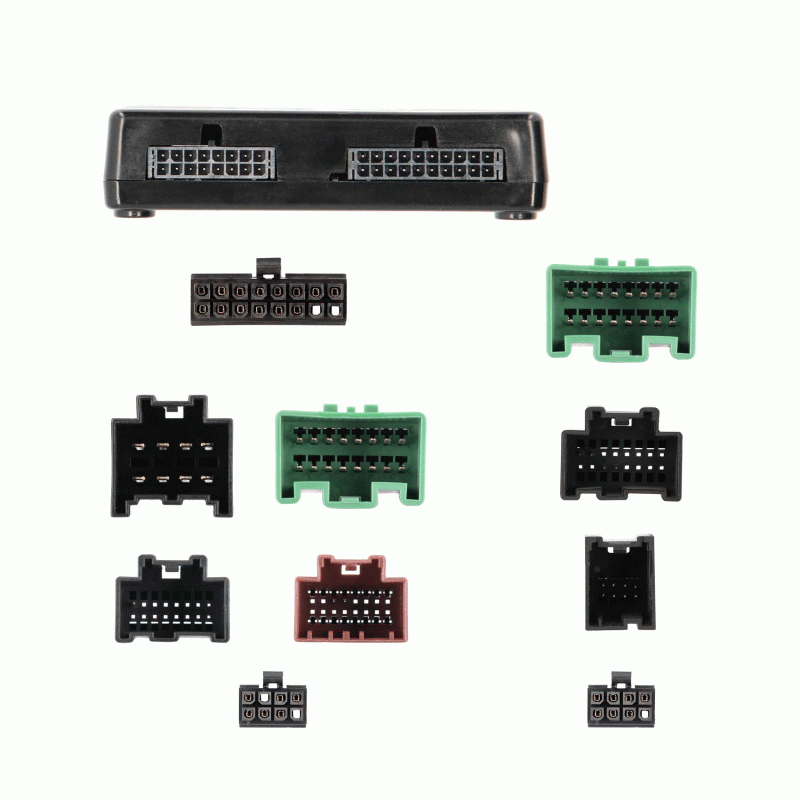

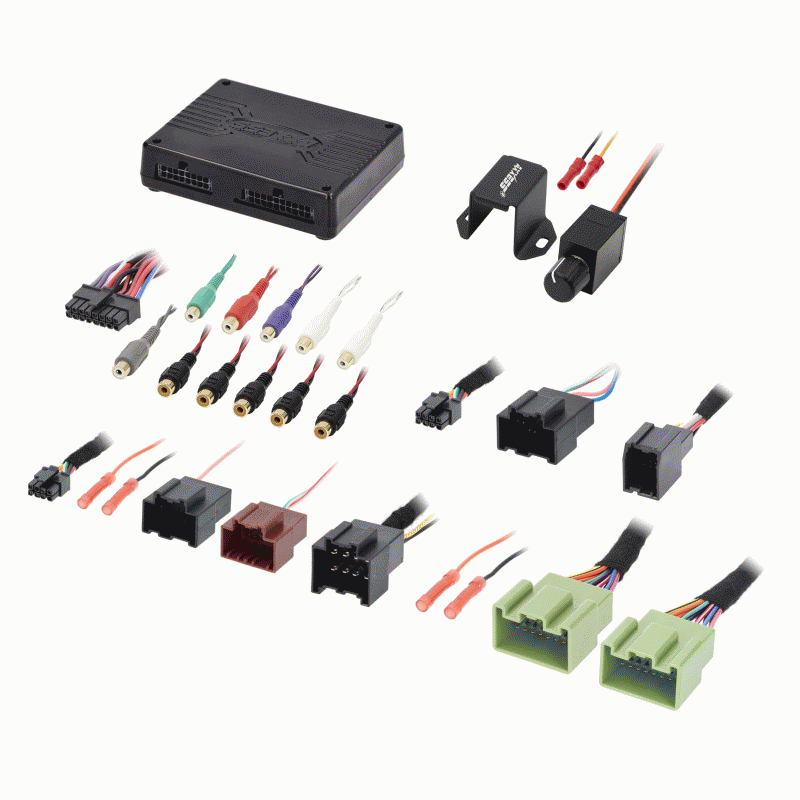

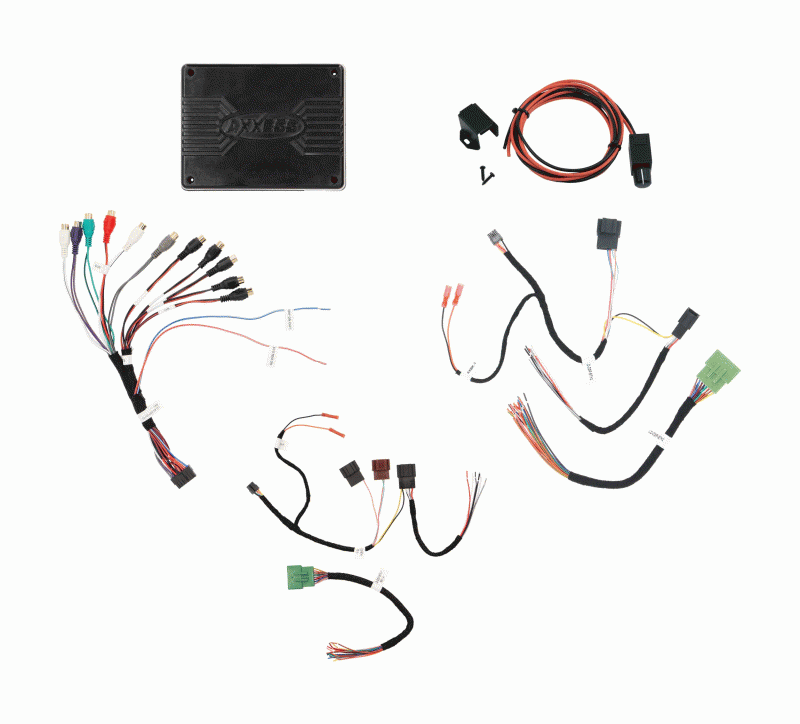

DSP-X Package w/T-Harness - Fits GM with BOSE 2019-Up

Description

The AXDSP-X offers installers a fast, cost-effective solution for improving the sound system with 10 individually assigned output channels, the ability to password-protect your settings, and an easy-to-use smartphone app. It has an onboard digital amplifier turn-on capability with built-in technology to retain many of the vehicle features commonly lost when installing a DSP.

Complete Tuning Control
Installers will have full control to fine-tune each of the 10 channel outputs individually, controlled wirelessly via a free app available for smartphones and tablets. The app makes tuning easy with a 31-band graphic EQ and up to 10ms time delay for each channel, with independent high pass, low pass, and bandpass filters.

Retain Features with a Built-in Interface
Utilizing Axxess’s data interface technology, the AXDSP-X goes beyond what a traditional DSP can do and retains many of the features commonly lost when upgrading a sound system. Voice prompts, parking sensor chimes, and other factory chimes are retained with an adjustable volume control that many traditional DSPs cannot offer. This is a cost-effective solution for customers who want to retain their factory radio and improve their vehicle sound quality, while still retaining systems like SYNC or OnStar®.

One Solution, Many Applications
The AXDSP-X solution already works with a wide range of vehicle applications and systems, including OE or aftermarket radios, and fixed-level analog and/or digitally controlled amplified systems, in addition to non-amplified vehicles that do not have chimes. The AXDSP-X works with all the existing DSP T-harnesses and still offers the same easy installation behind the radio.

See the AXDSP-X application chart for up-to-date vehicle-specific information.

  • Designed for Ethernet amplifiers
  • Ethernet data interface included
  • AXDSP-X included
  • Includes an amp bypass harness
  • Retains factory chimes, including parking sensor chimes
  • Retains OnStar voice prompts
  • All chimes/voice prompts go through the aftermarket amp
  • Adjustable chime level
  • Micro “B” USB updatable
Applications

Cadillac

  • XT4 2019-Up

Chevrolet

  • Blazer 2019-Up
  • Camaro 2019-Up
  • Cheyenne 2019-2021
  • Colorado 2019-Up
  • Equinox 2019-Up
  • Malibu 2019-Up
  • Silverado 1500/2500/3500 2019-2021
  • Volt 2019

GMC

  • Acadia 2019-Up
  • Canyon 2019-Up
  • Sierra 1500/2500/3500 2019-2021
  • Terrain 2019-Up

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.
