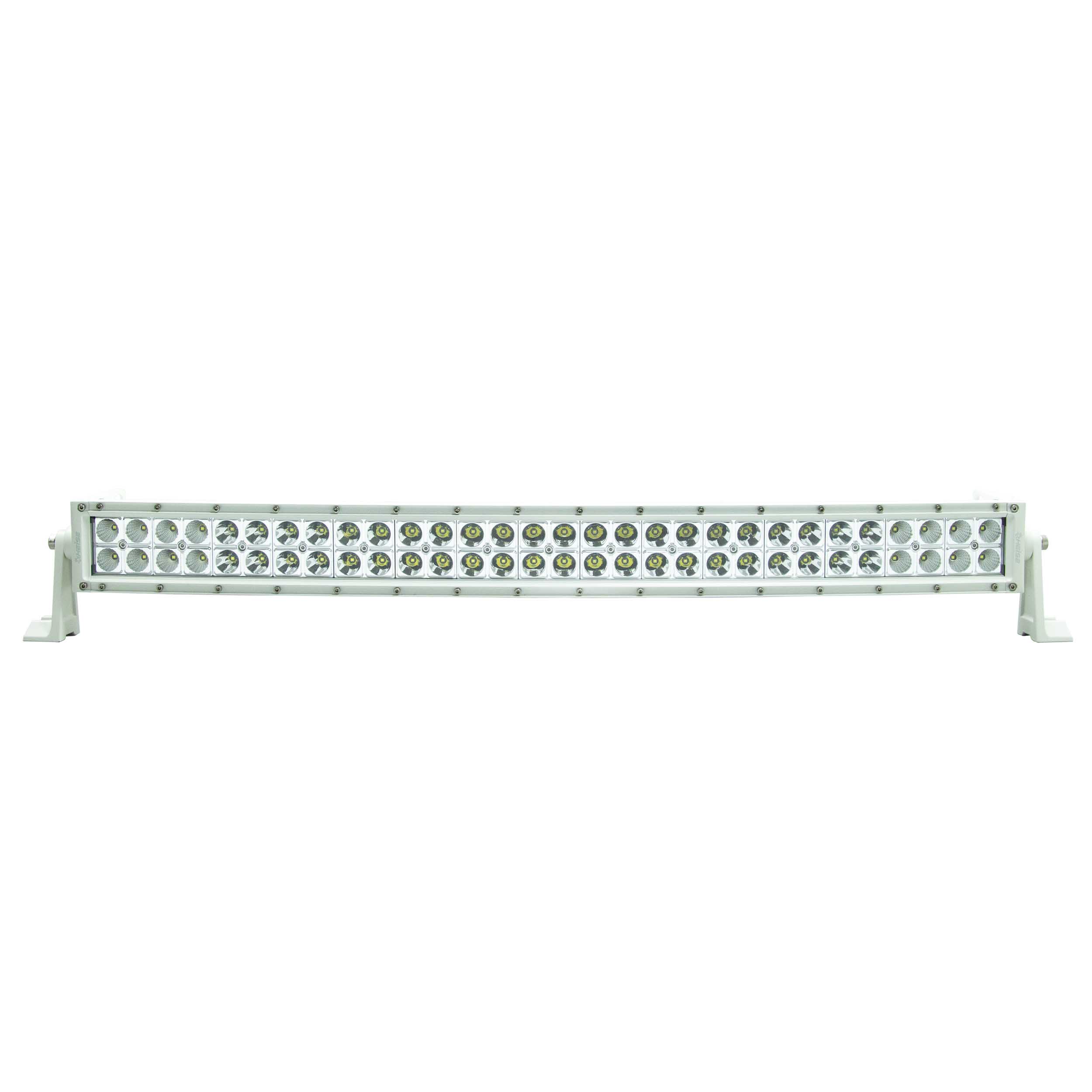

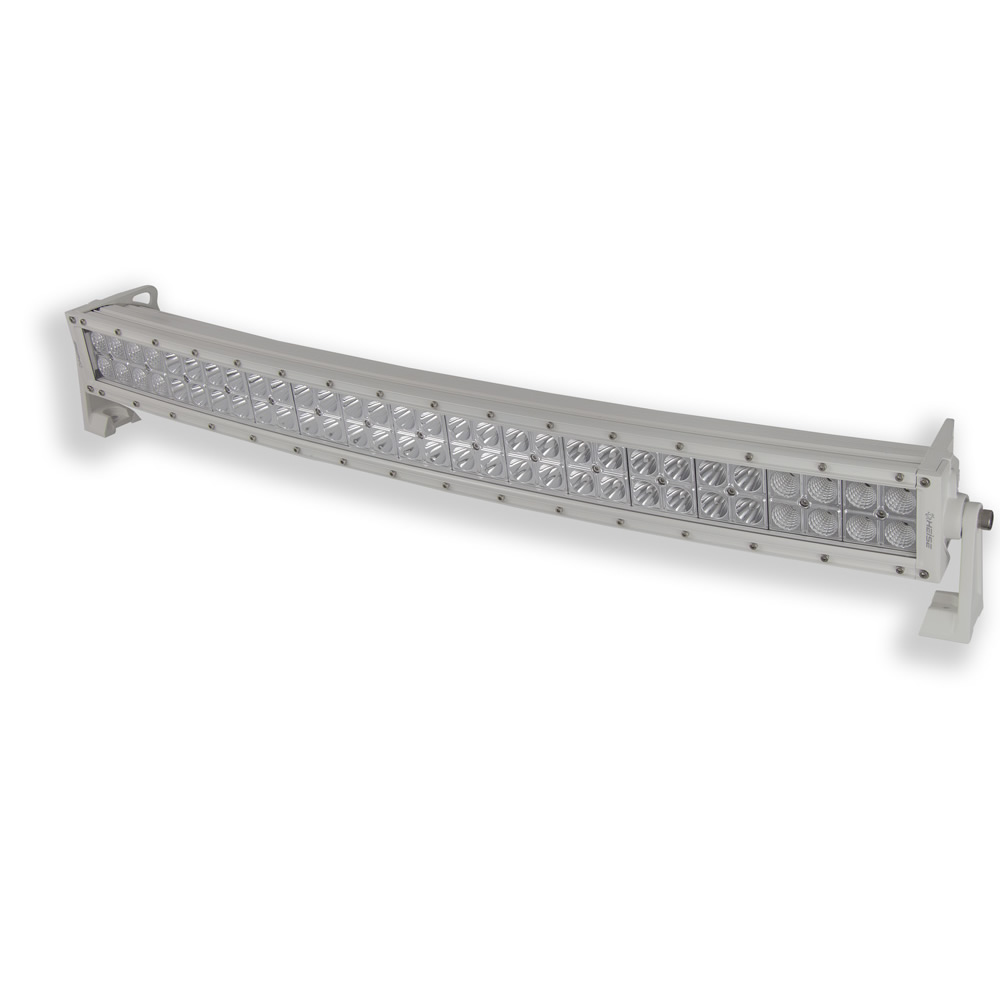

Curved Dual Row Marine LED Lightbar - 30 Inch
Curved Dual Row Marine LED Lightbar - 30 Inch

Curved Dual Row Marine LED Lightbar - 30 Inch

Metra MarineMarine Lighting and AccessoriesMarine LED Lightbars
SKU: HE-MDRC30
MSRP $686.99
WARNING

This product can expose you to Di (2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov .

Show full chemical list
Butyl benzyl phthalate (BBP)d, Cadmium, Di (2-ethylhexyl)phthalate (DEHP), Di-n-butyl phthalate (DBP), Formaldehyde (gas), Naphthalene
Product Documents

More Product Info

Specs
  • Input Voltage: 10-30V DC
  • Wattage: 180 W (60-3W LEDs)
  • Raw Lumens: 14400
  • LUX at 10M: 625
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90°) / Spot(8°)
Construction
  • Die-Cast Aluminum Housing
  • Housing Color: White Coating with UV Inhibitors
  • Membrane: Gore®
  • Lens Material: PC
  • Mounting Bracket: Die-Cast Aluminum
  • Hole Dimensions:
    • Brackets Turned Inward – 31"
    • Brackets Turned Outward – 33.5"
    • Mounting Bolt Drill – 25"
  • Height of Light Bar Itself: 3"
  • Depth of Light Bar Itself: 3.5"
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316
Operation
  • Operating Temperature: – 40° C to +60° C
  • Current Consumption: 9.5 Amps at 13.8 Volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

Vehicle compatibility information is not currently listed. This may be a universal part or details are being updated.

Have questions about fitment? Contact our tech support.
