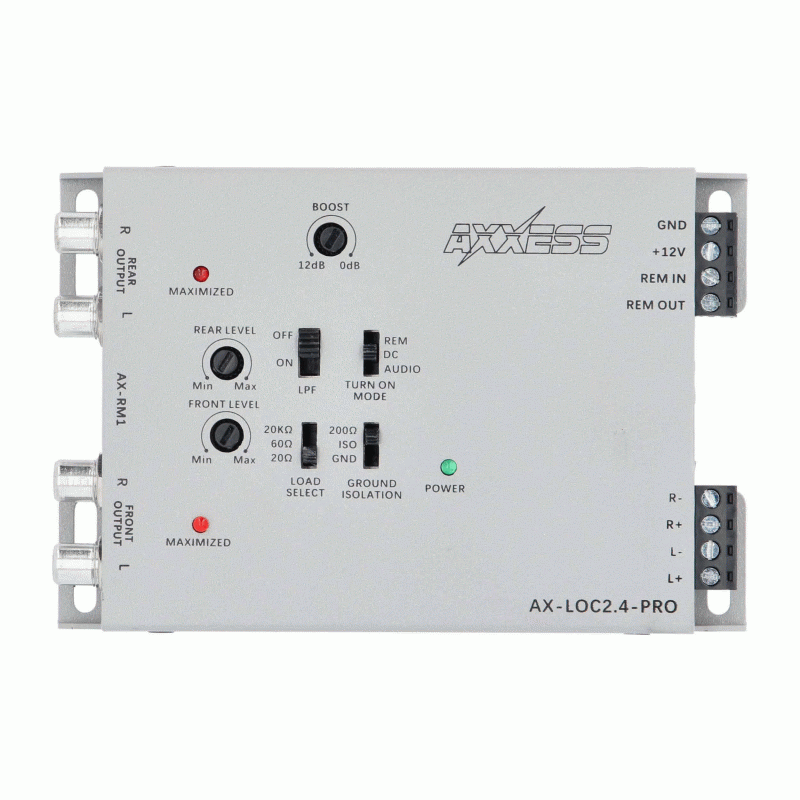

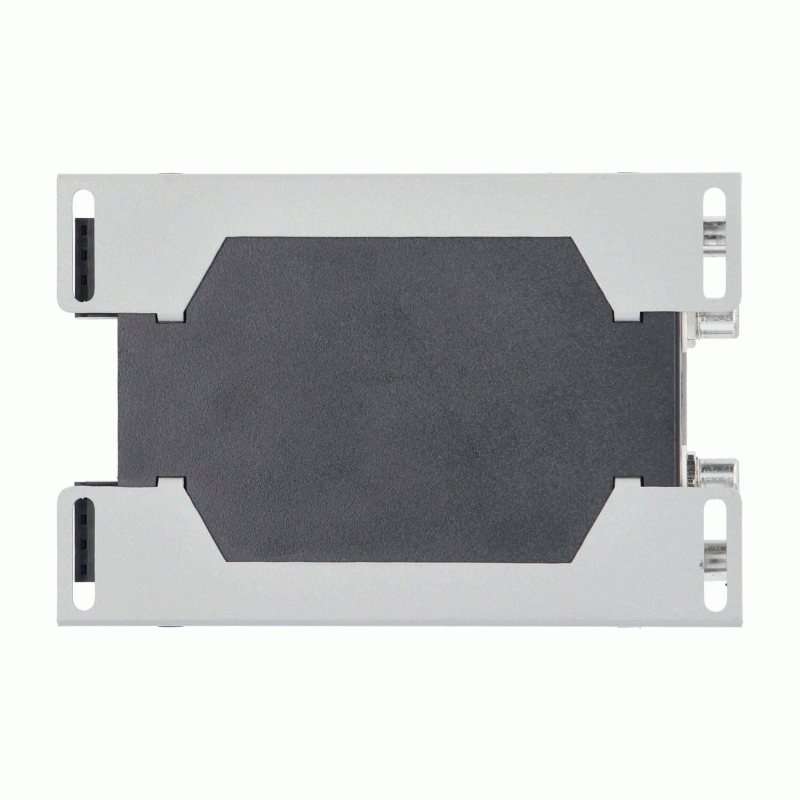

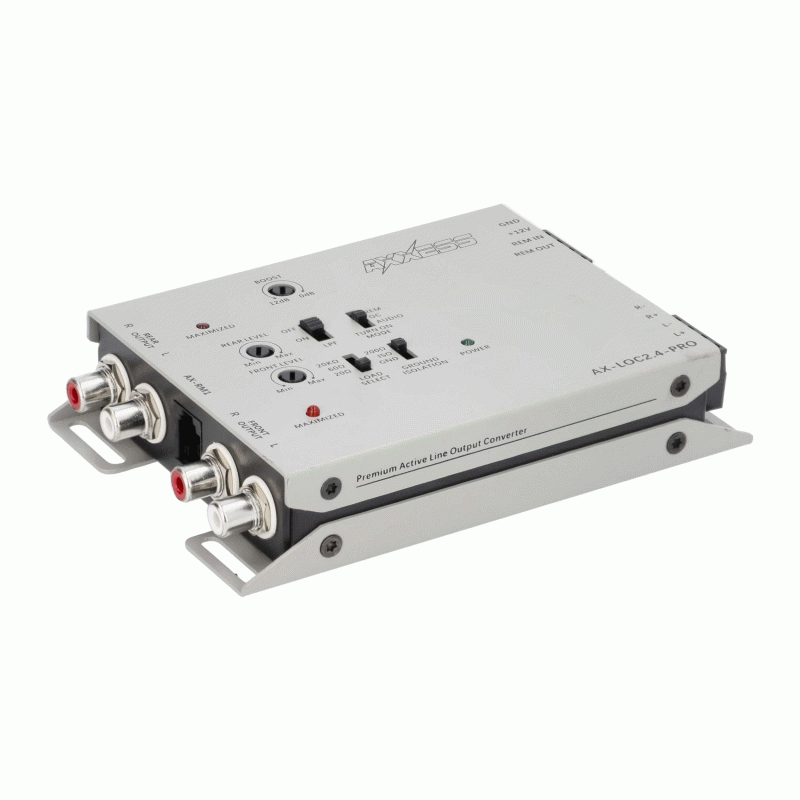

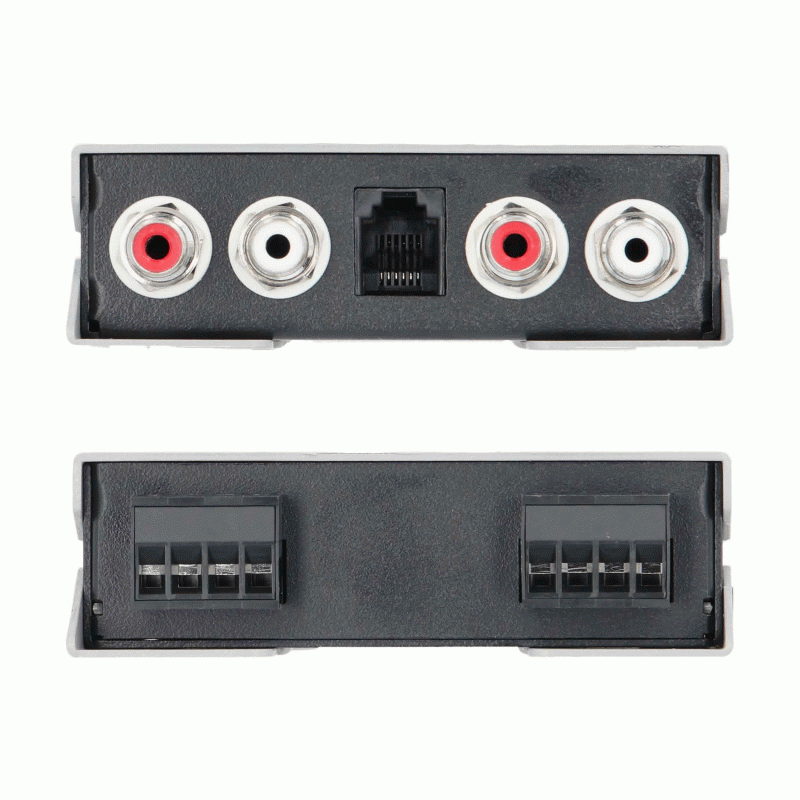

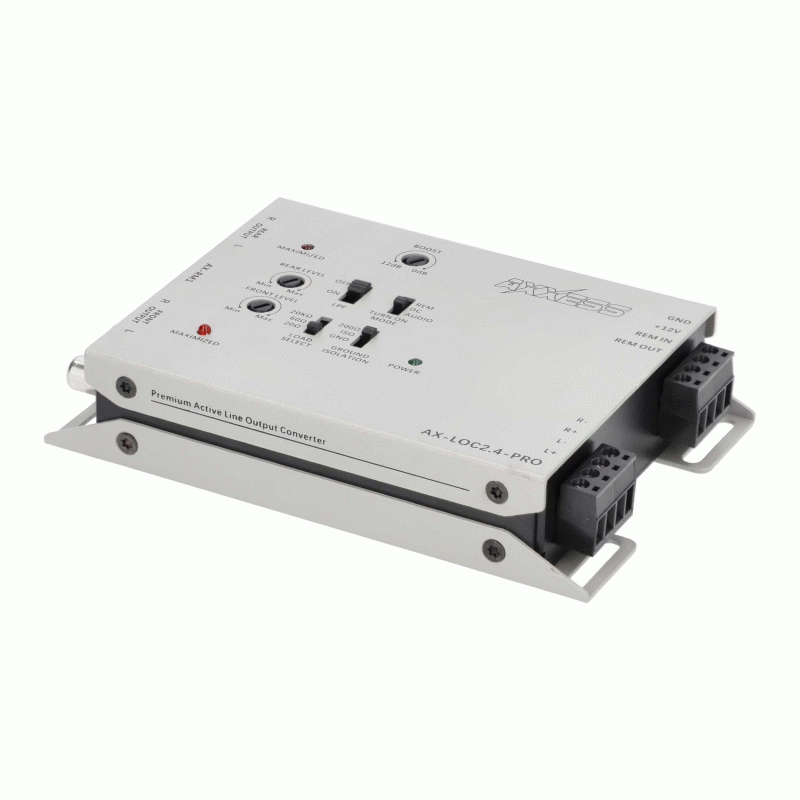

Stock No. AX-LOC2.4-PRO
4CH Active Line Output Converter with Bass Boost
- Product Details
Description
This 4-channel Active LOC with Bass Boost from Axxess has universal applications and enables installers to add aftermarket amplifiers to OEM source units for enhanced sound quality. This advanced technology features incredible input power capabilities, a load selector, clip indicator, enhanced output controls, and noise isolation countermeasures. Add the Axxess AX-RM1 external Bass knob for additional subwoofer adjustments. This supplemental product will directly plug into the Axxess PRO series LOC’s and line driver.
Features
- 4-channel: 2 in, 4 out
- Max input level: 40V / 400W @20K Ohm
- Operating voltage: 9V-16V
- Optional PR-RM-1
- Trigger selection: REM / DC / AUDIO
- Remote Output Rating 500mA
- Turn on trigger (DC): 3V-7V
- Output max @13.8V: 9.5V RMS
- Input impedance selection: 20 / 60 / 20k Ohm
- Ground selection: GND / ISO / 200 Ohm
- Independent Front/Rear Gain adjustment: – 28dB to +1dB
- Input sensitivity: 0.5V-20V
- Signal to noise: >110dB @6.4V output
- THD+N (Total Harmonic Distortion): <0.01%
- Frequency response: 20Hz – 20kHz
- Low pass filter: <250Hz (rear channels)
- Bass boost: 0dB + 12dB (rear channels)
- Remote control: optional AX-RM1
Shipping Now
